F29, F31, F32, F35, F36, F46

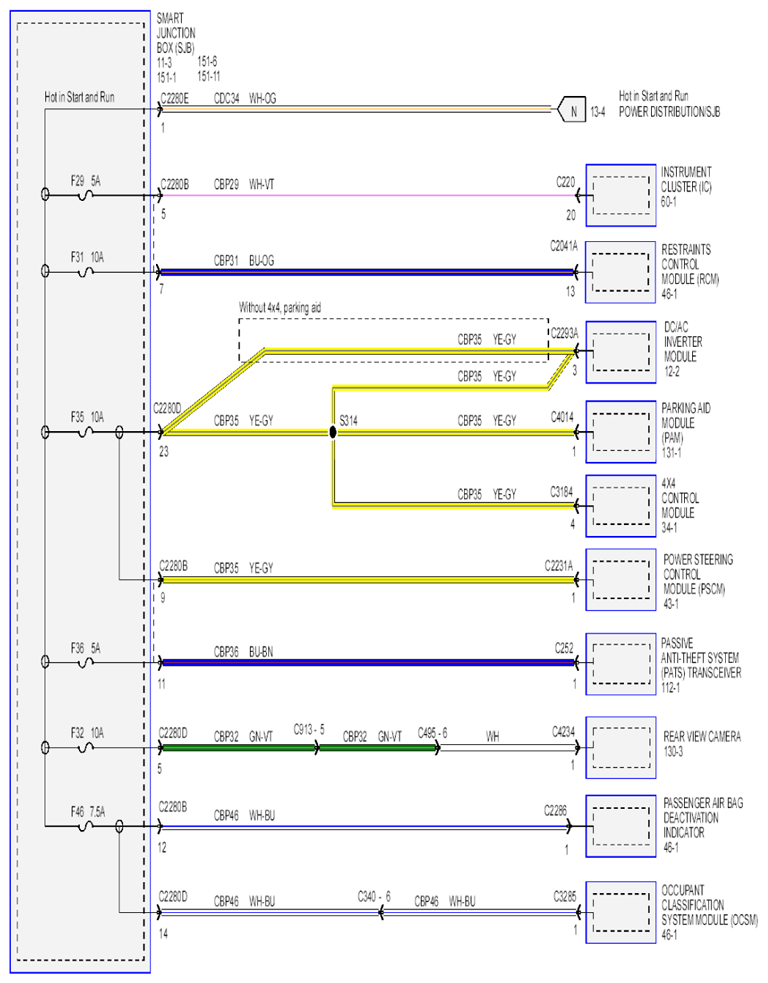

Fig 1: Power Distribution Schematic (15 Of 18)

G07855814

Courtesy of FORD MOTOR CO.
