Power Distribution: F28

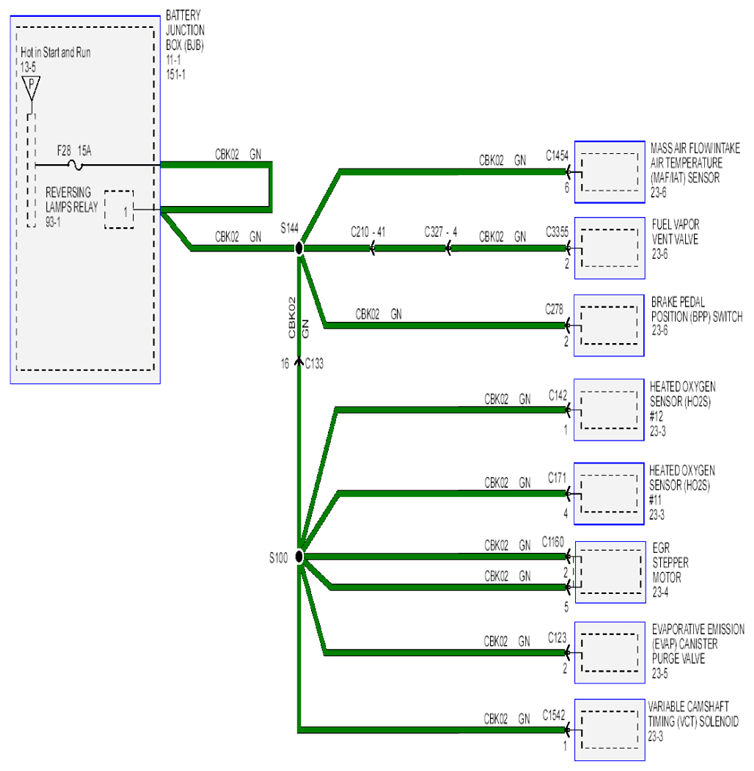

Fig 1: Power Distribution Schematic (6 Of 18)

G07855805

Courtesy of FORD MOTOR CO.
