F26, F27, F38, F39, F40

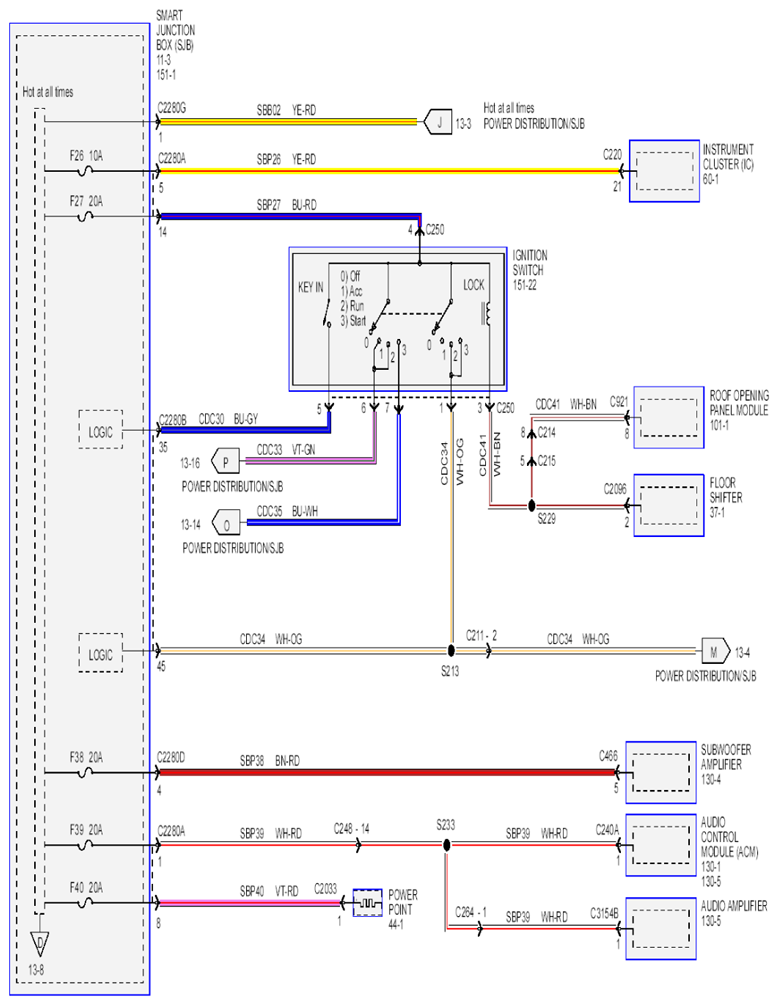

Fig 1: Power Distribution Schematic (7 Of 18)

G07855806

Courtesy of FORD MOTOR CO.
