F22, F23, F25, F35

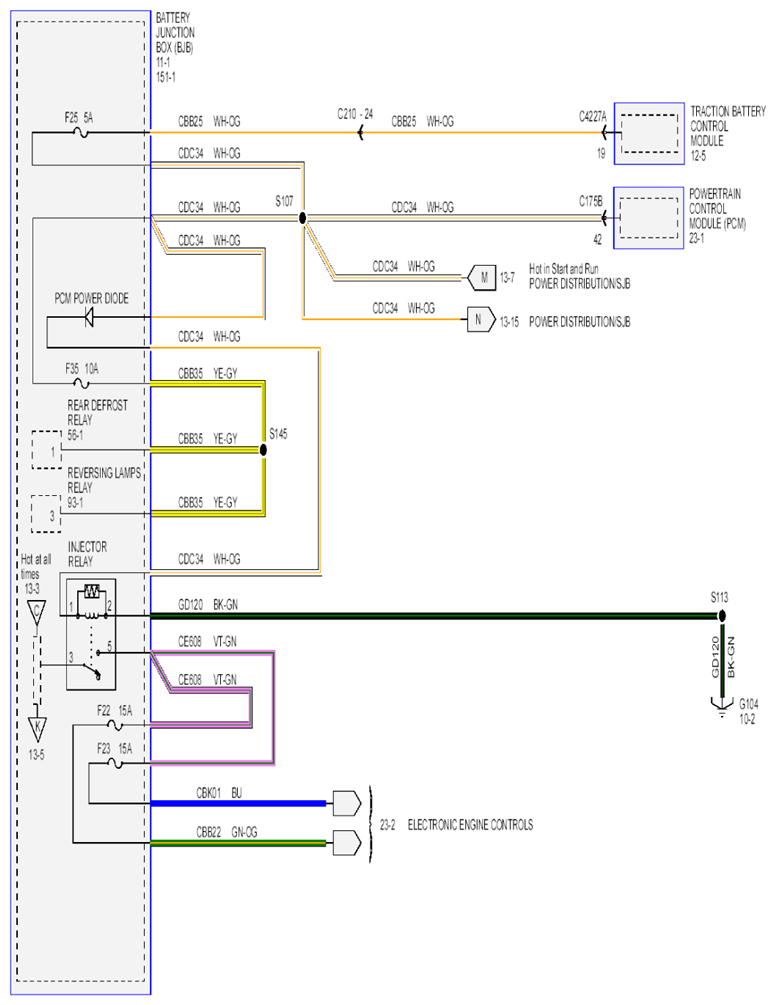

Fig 1: Power Distribution Schematic (4 Of 18)

G07855803

Courtesy of FORD MOTOR CO.
