F15, F16, F17, F19, Midi

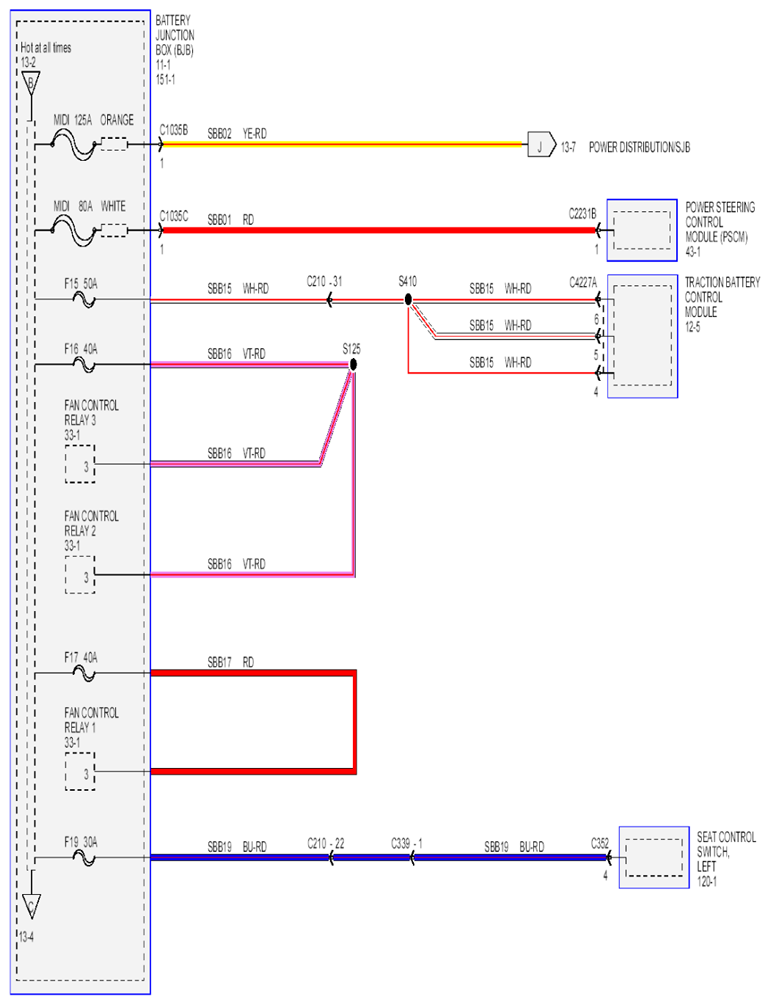

Fig 1: Power Distribution Schematic (3 Of 18)

G07855802

Courtesy of FORD MOTOR CO.
