Home >> Ford >> 2011 >> Escape Hybrid, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Hybrid) >> Power Distribution >> F1, F2, F5, F6

F1, F2, F5, F6

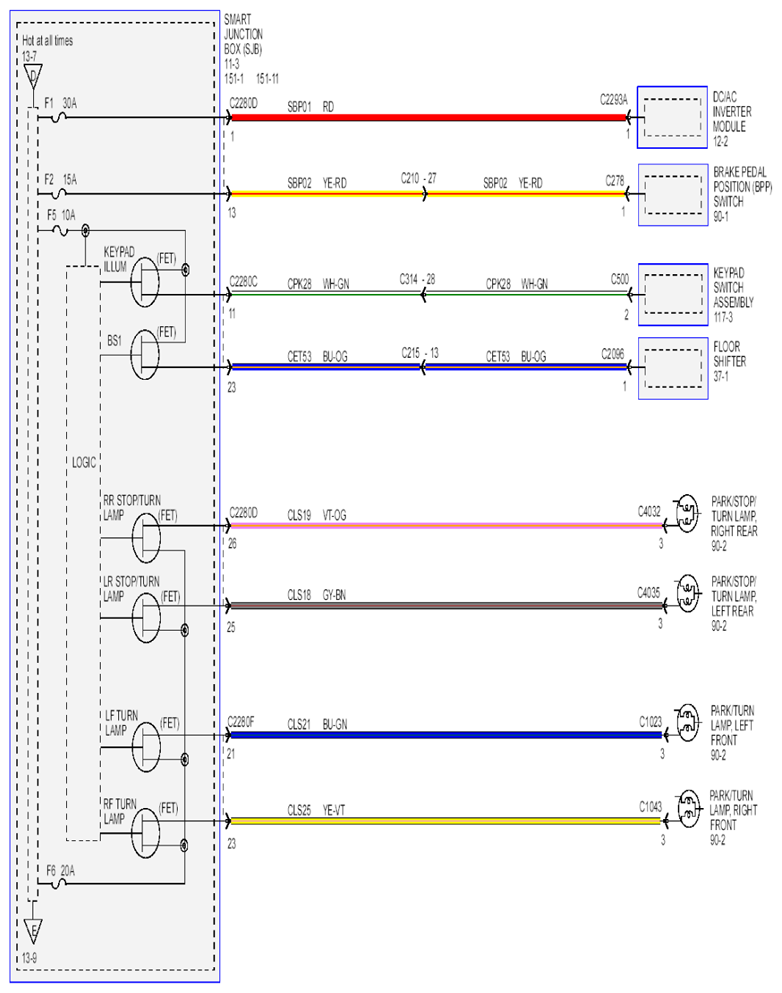

Fig 1: Power Distribution Schematic (8 Of 18)

G07855807

Courtesy of FORD MOTOR CO.
