Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Passive Anti-Theft System
Passive Anti-Theft System

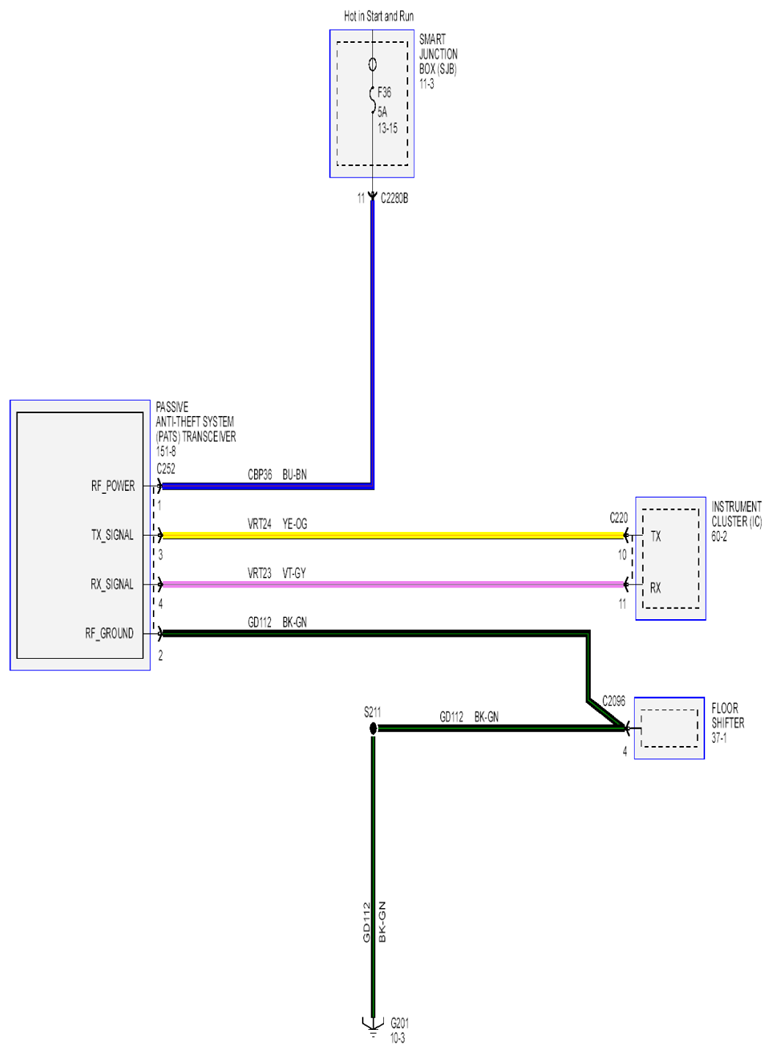

Fig 1: Passive Anti-Theft System Circuit
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
