With GPS MEDIUM SPEED CAN

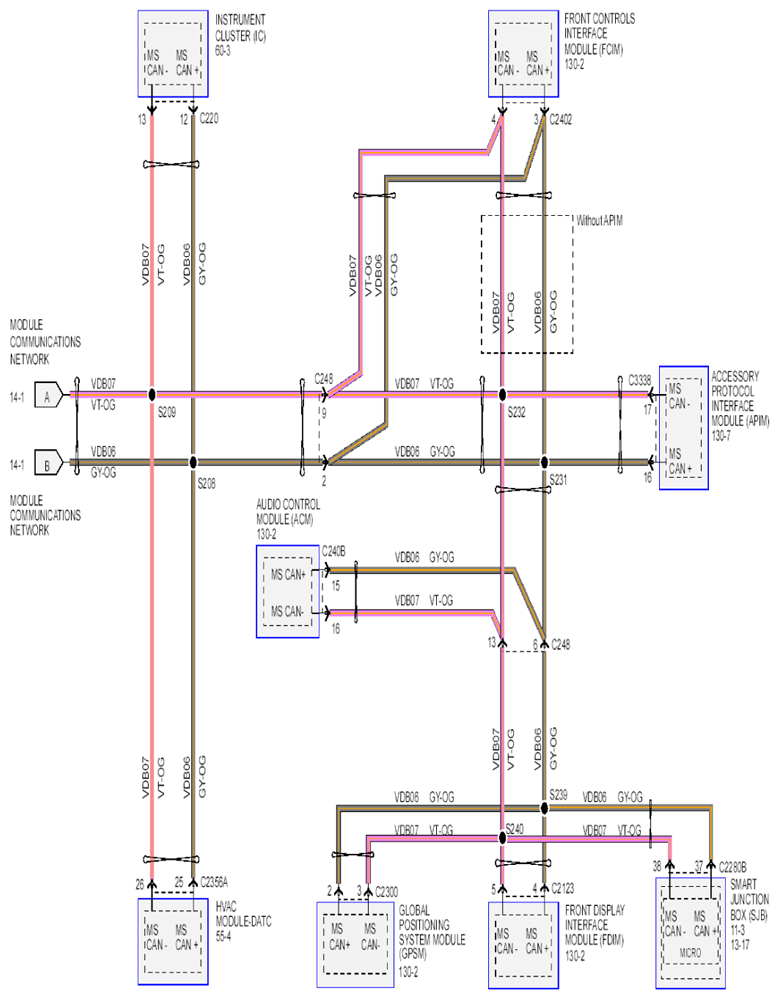

Fig 1: Module Communications Network (GPS Medium Speed Can) (2 Of 3)
G07855819Courtesy of FORD MOTOR CO.

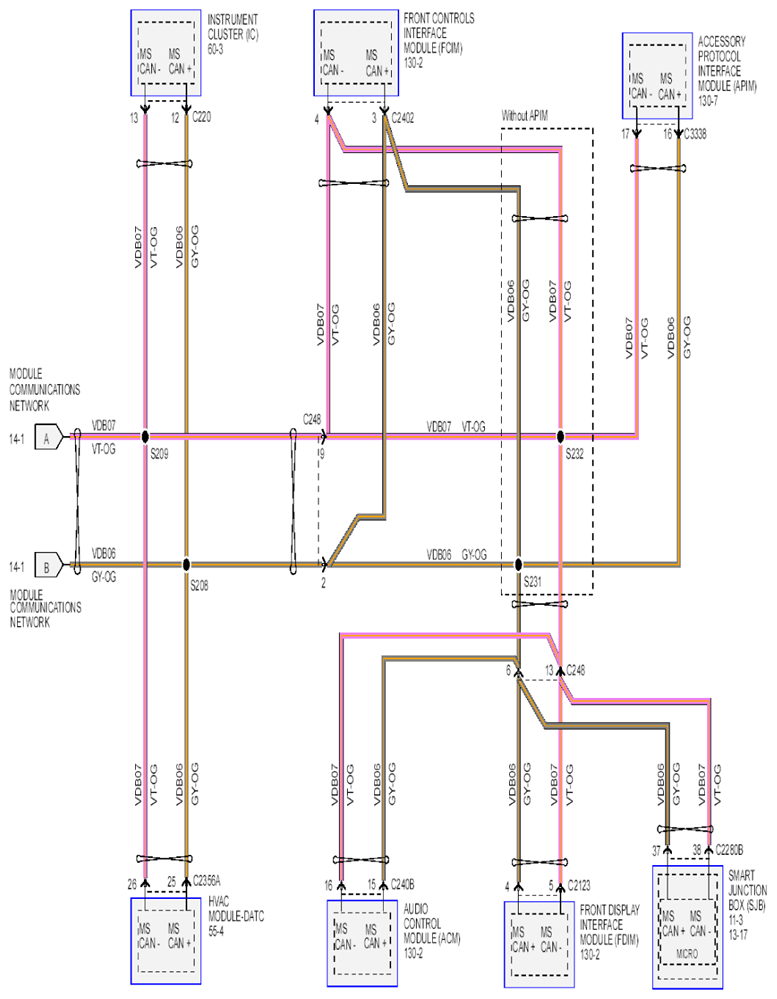

Fig 2: Module Communications Network (GPS Medium Speed Can) (3 Of 3)
G07855820Courtesy of FORD MOTOR CO.
