High Speed Can
High Speed Can

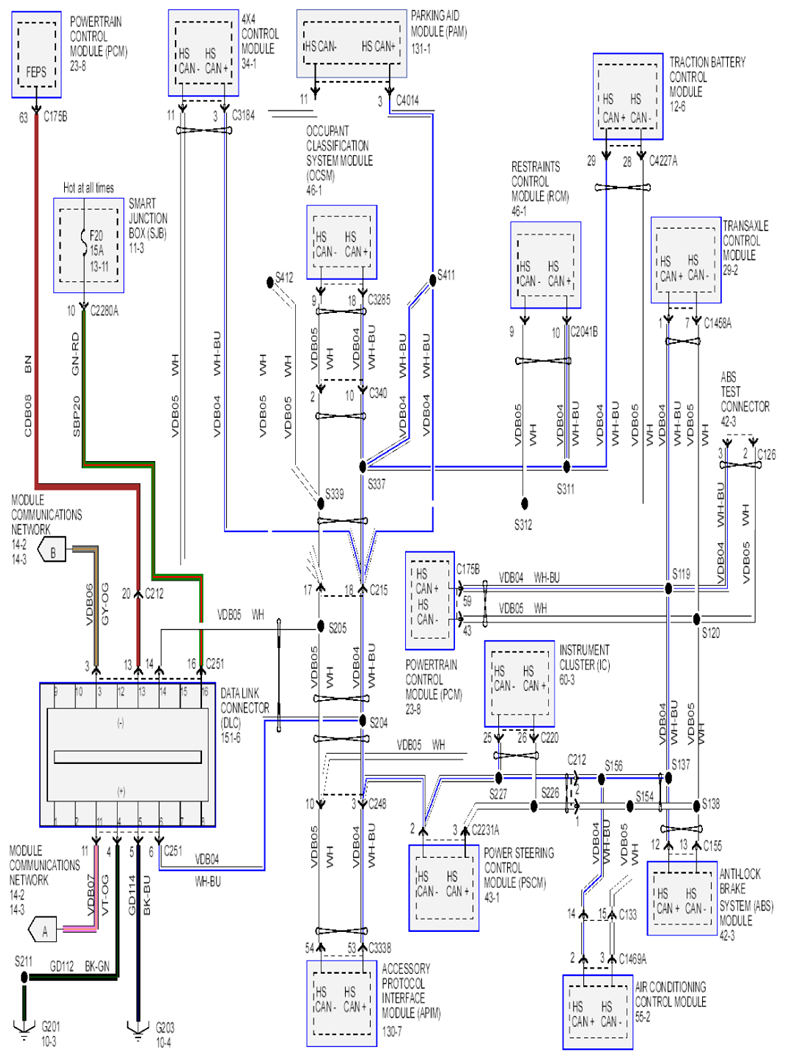

Fig 1: Module Communications Network (High Speed Can) (1 Of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
