Without Roof Opening Panel

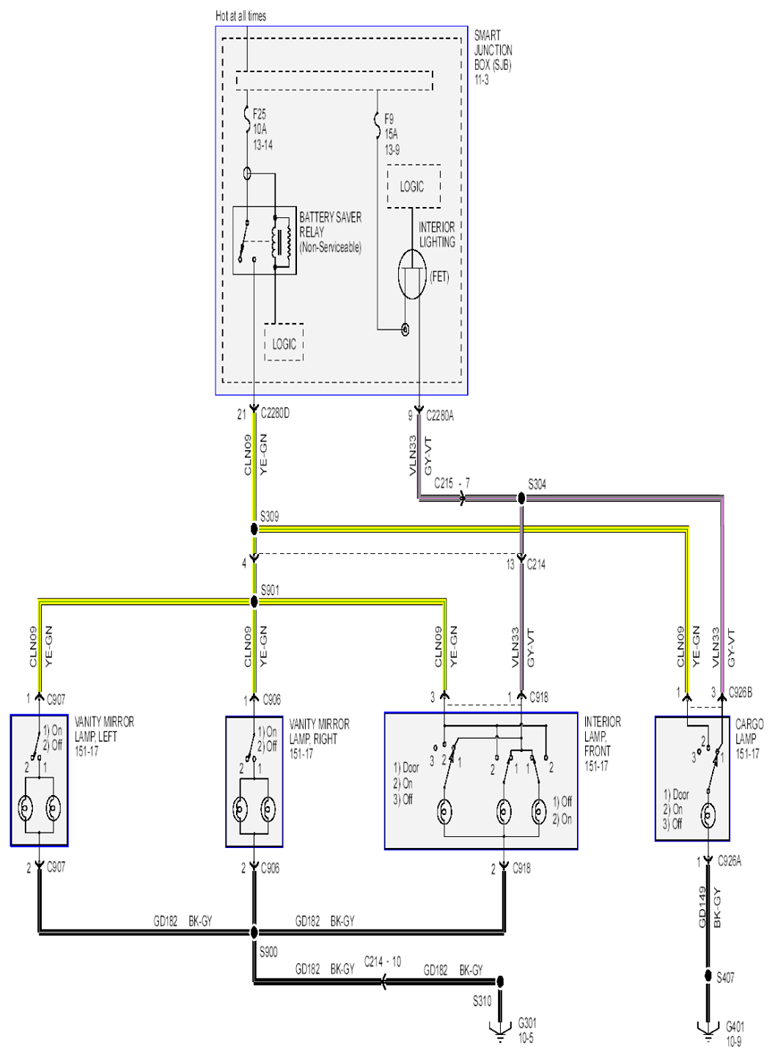

Fig 1: Interior Lamps - Without Roof Opening Panel (2 Of 4)
G07855864Courtesy of FORD MOTOR CO.

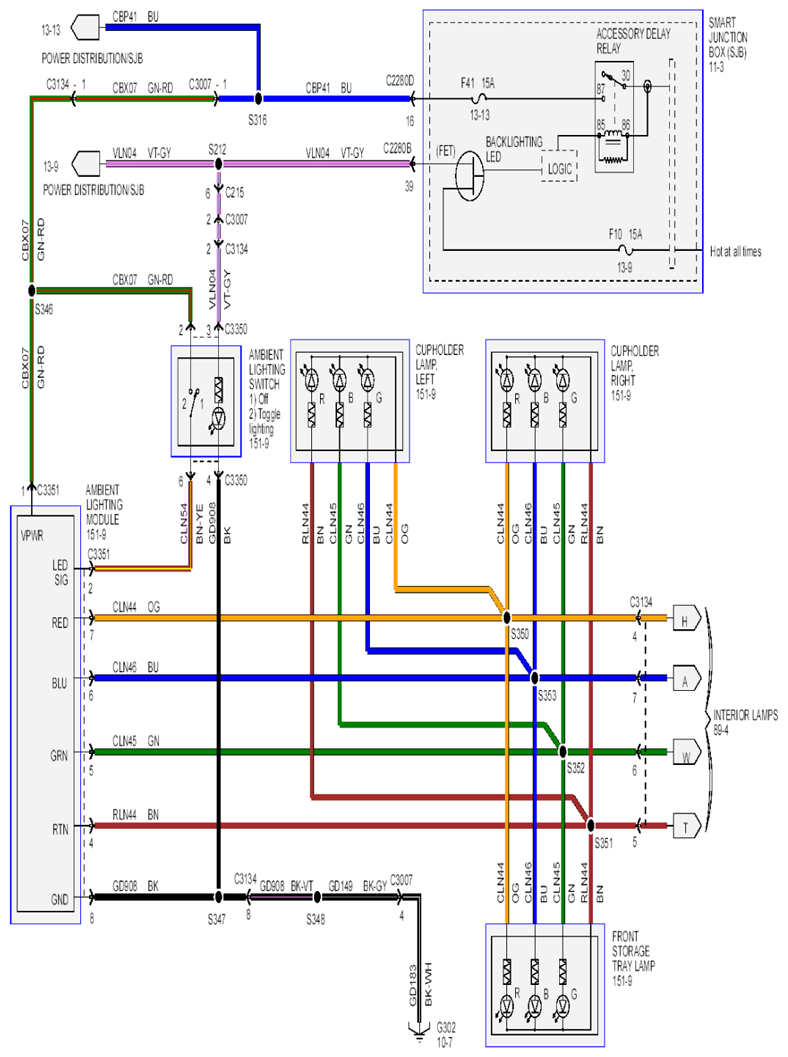

Fig 2: Interior Lamps - Without Roof Opening Panel (3 Of 4)
G07855865Courtesy of FORD MOTOR CO.

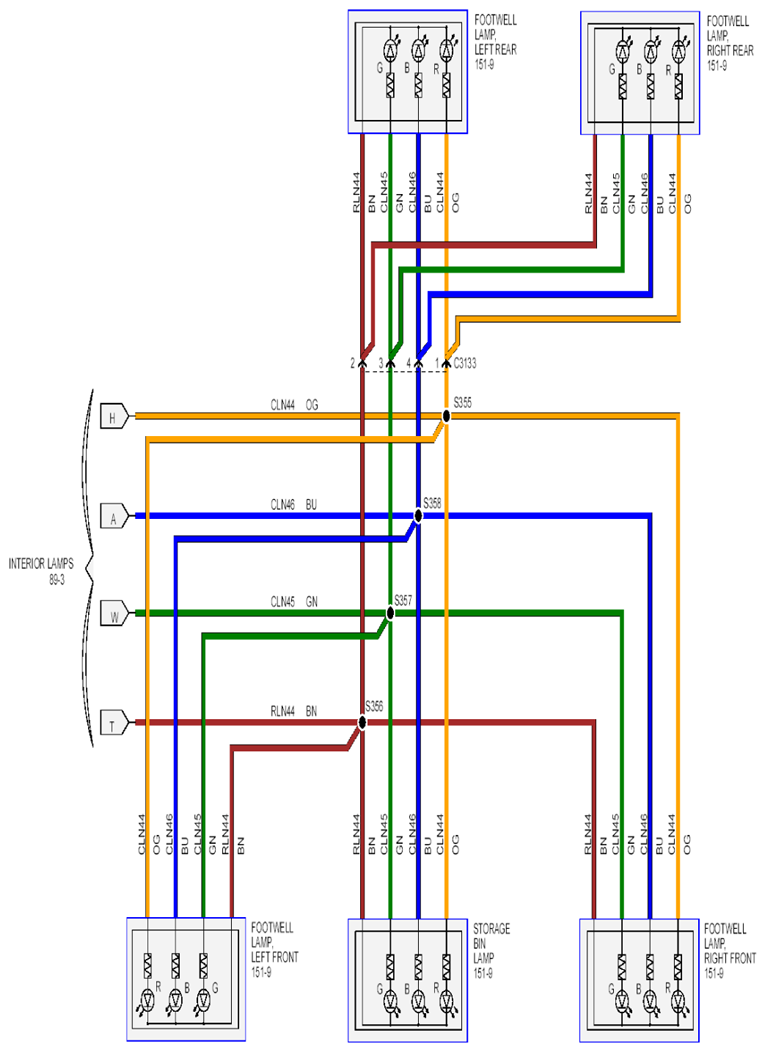

Fig 3: Interior Lamps - Without Roof Opening Panel (4 Of 4)
G07855866Courtesy of FORD MOTOR CO.
