Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Interior Lamps
>>
With Roof Opening Panel
With Roof Opening Panel

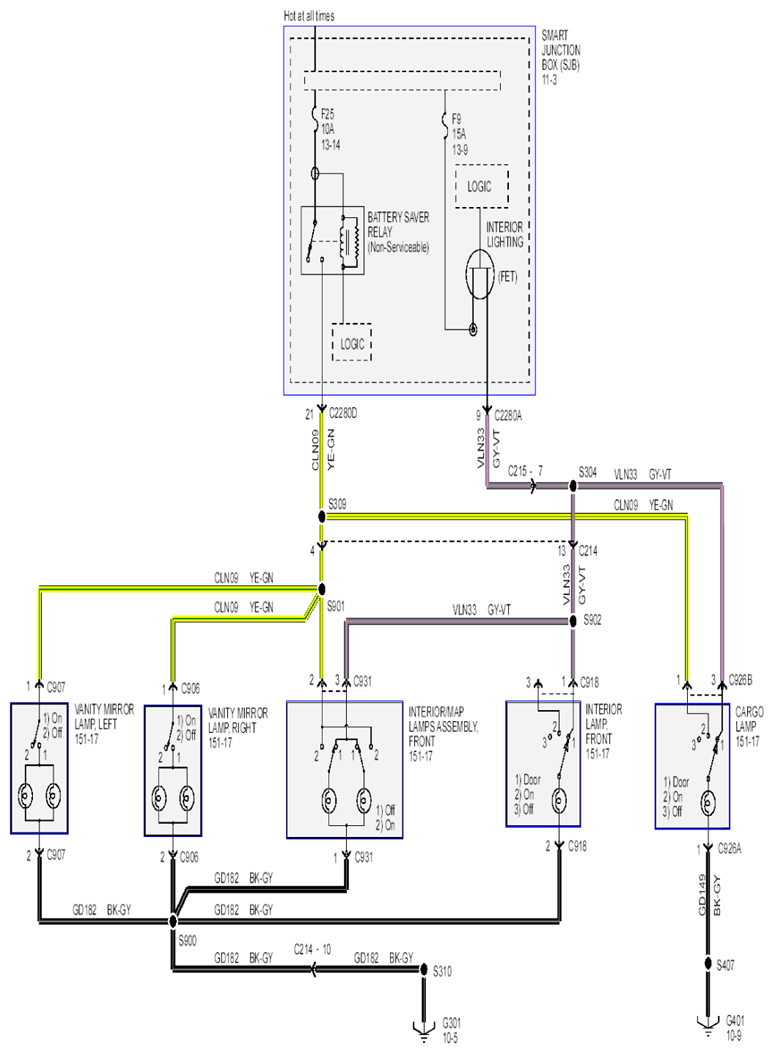

Fig 1: Interior Lamps - With Roof Opening Panel Circuit (1 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
