Instrument Cluster

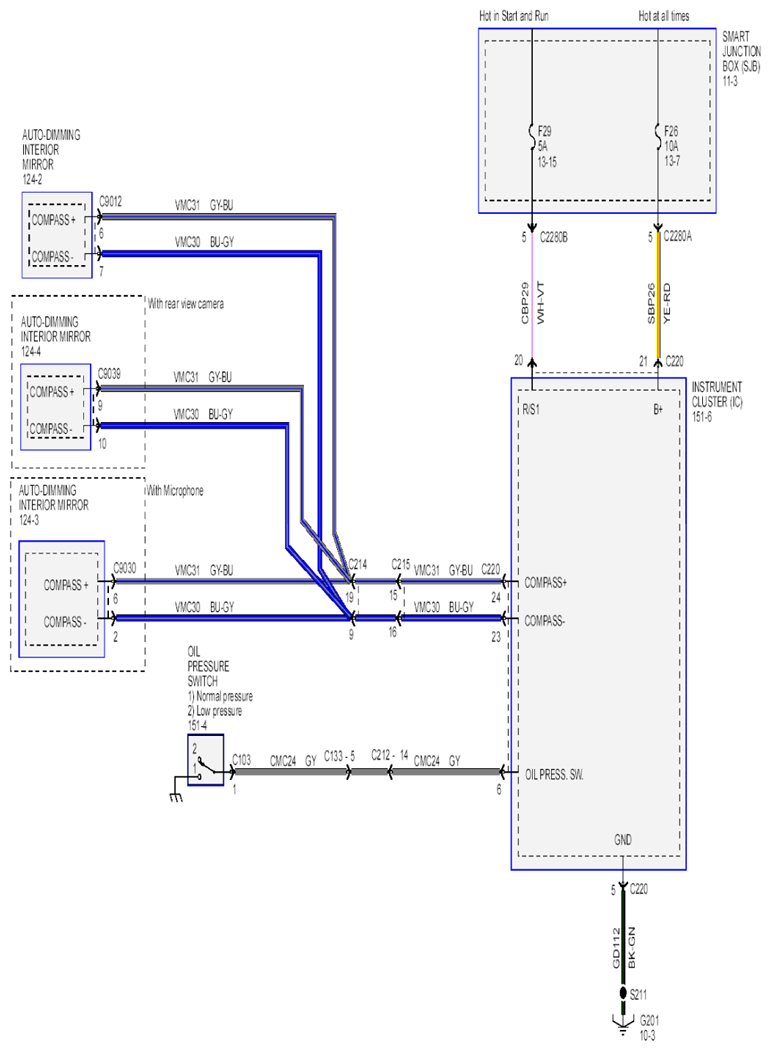

Fig 1: Instrument Cluster Circuit (1 Of 3)
G07855854Courtesy of FORD MOTOR CO.

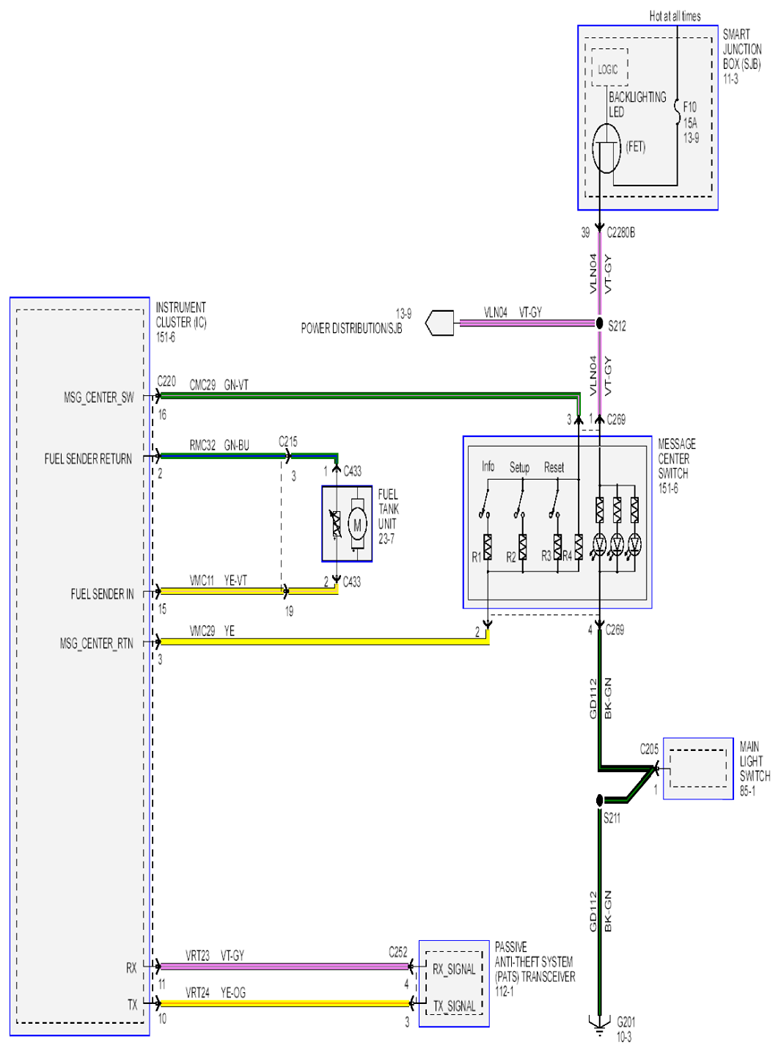

Fig 2: Instrument Cluster Circuit (2 Of 3)
G07855855Courtesy of FORD MOTOR CO.

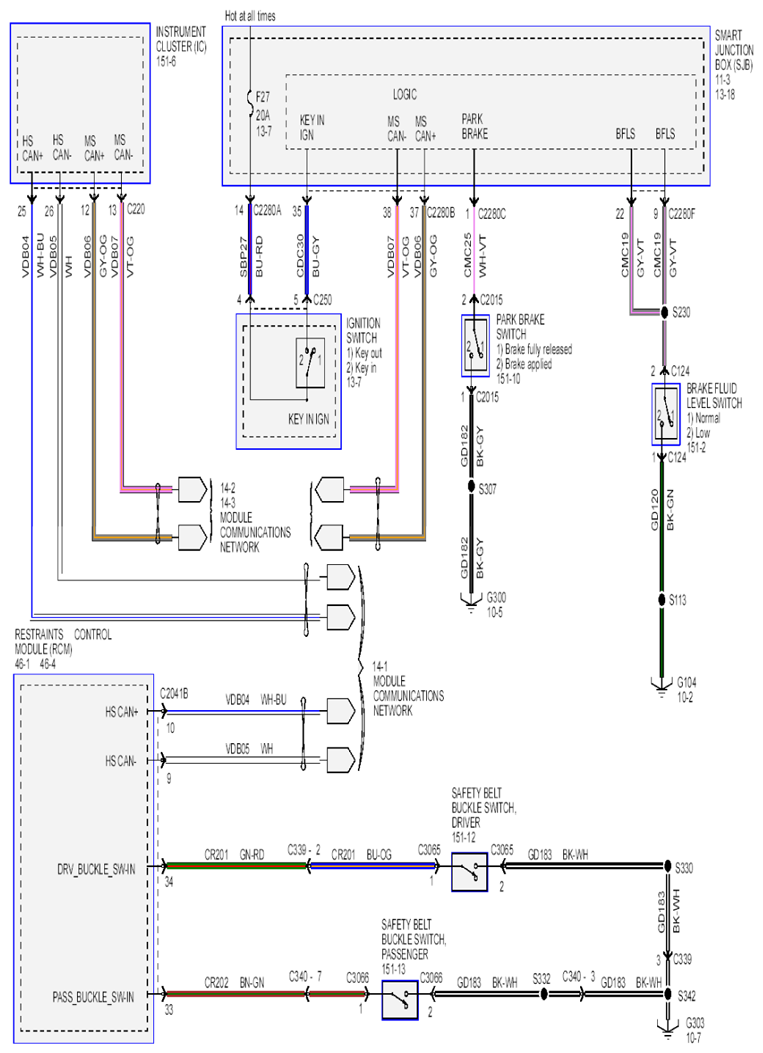

Fig 3: Instrument Cluster Circuit (3 Of 3)
G07855856Courtesy of FORD MOTOR CO.
