OEM Wiring Diagrams (Hybrid): Headlamps_Autolamps

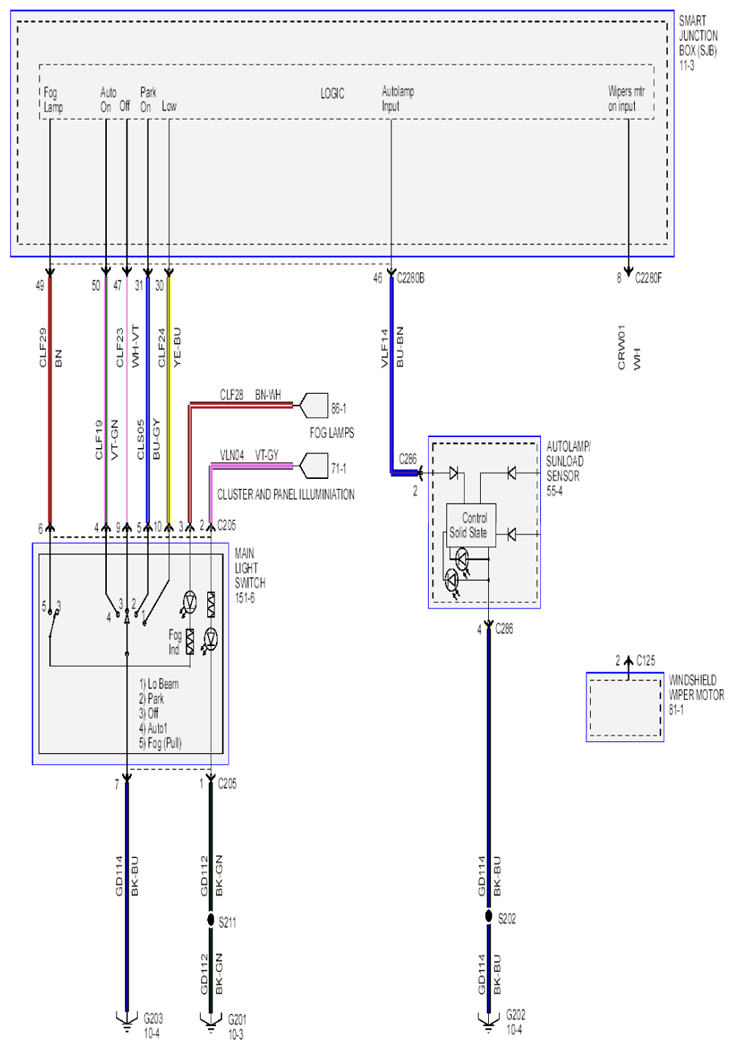

Fig 1: Headlamps_Autolamps Circuit (1 Of 2)
Courtesy of FORD MOTOR CO.

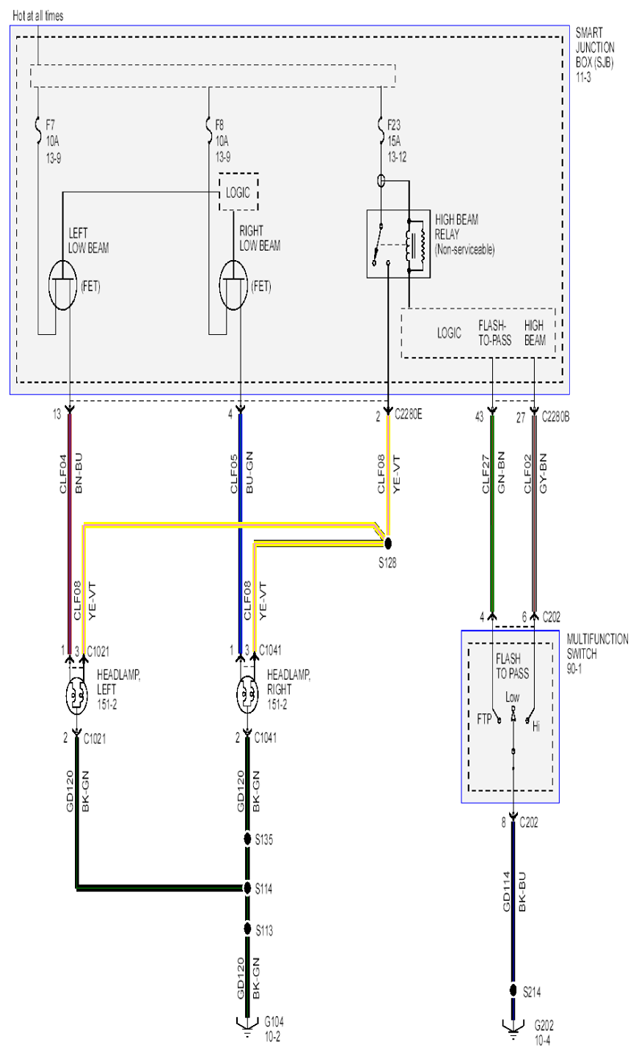

Fig 2: Headlamps_Autolamps Circuit (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
