OEM Wiring Diagrams (Hybrid): Grounds: G401

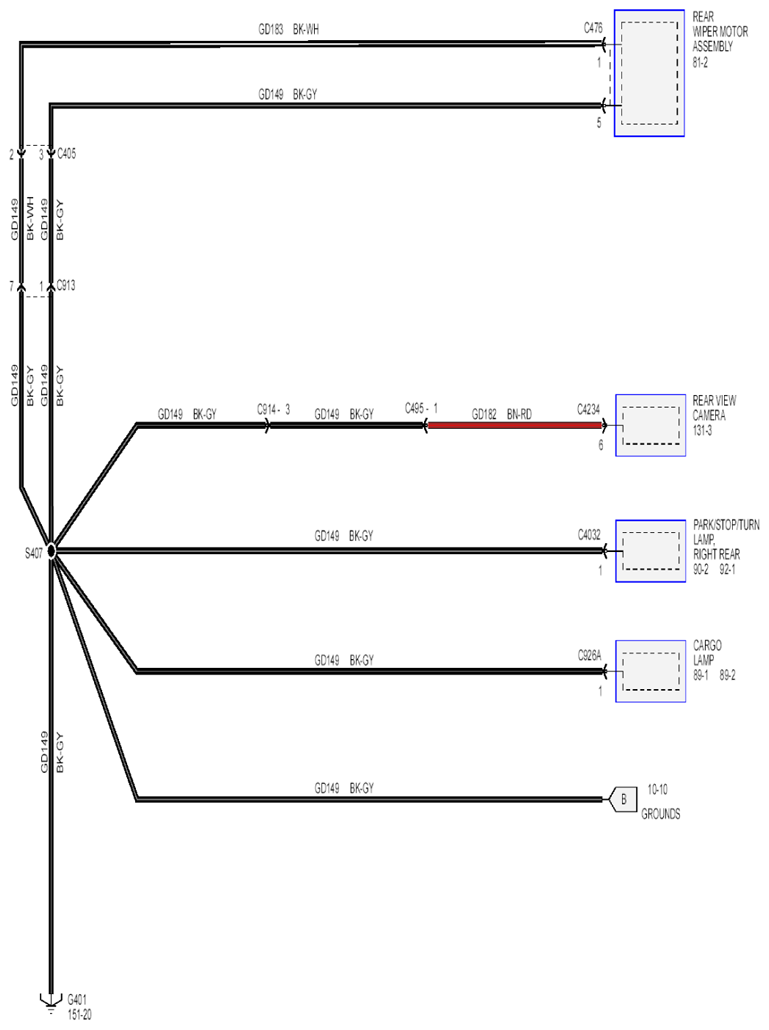

Fig 1: Vehicle Grounds Schematic (9 Of 10)

G07855792

Courtesy of FORD MOTOR CO.

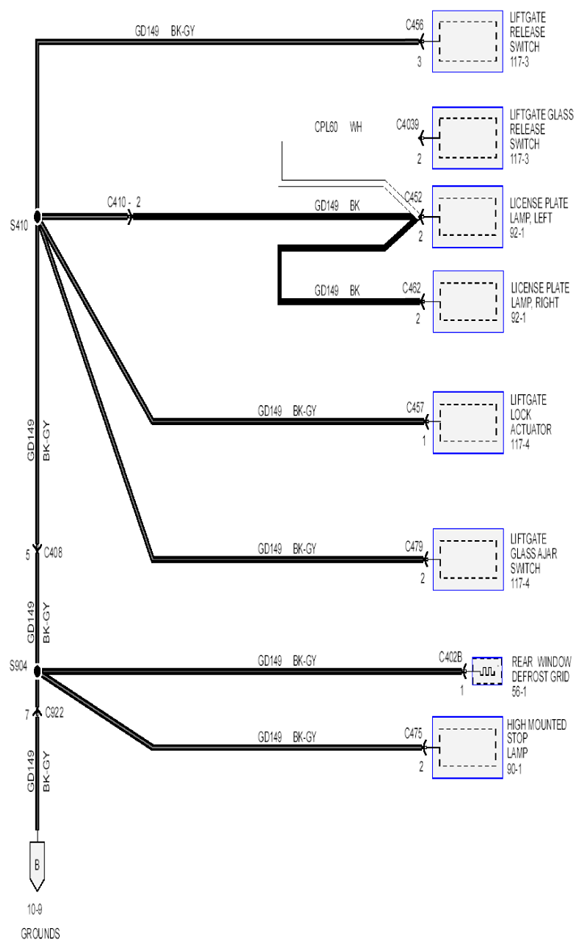

Fig 2: Vehicle Grounds Schematic (10 Of 10)

G07855793

Courtesy of FORD MOTOR CO.
