Home >> Ford >> 2011 >> Escape Hybrid, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Hybrid) >> Grounds >> G302, G303

G302, G303

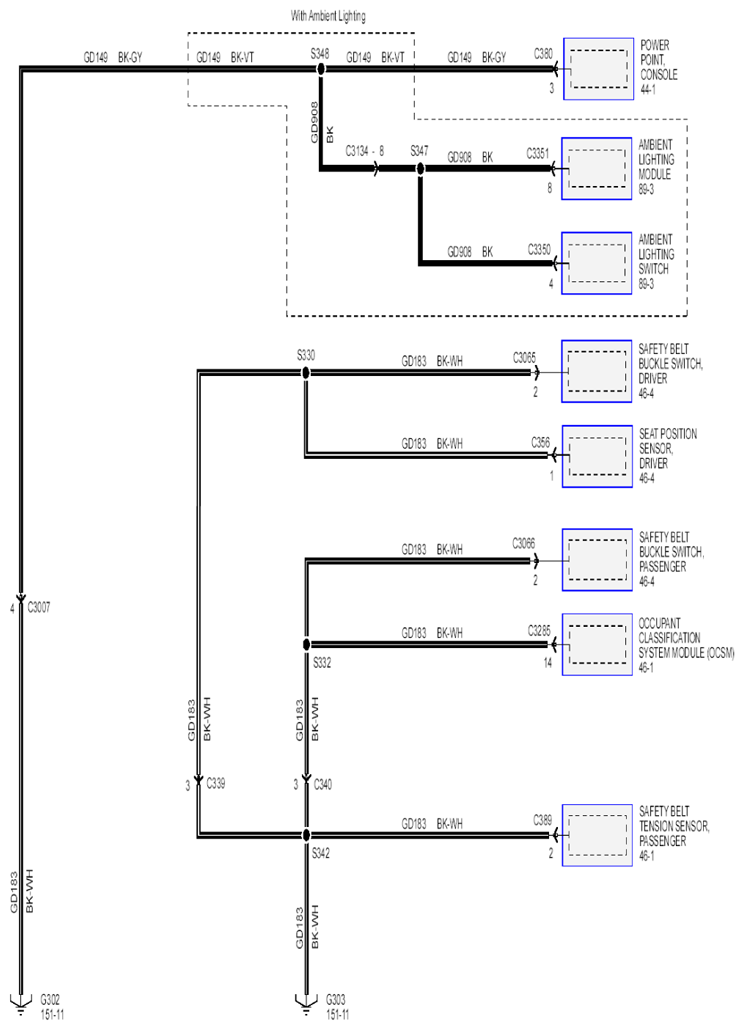

Fig 1: Vehicle Grounds Schematic (7 Of 10)

G07855790

Courtesy of FORD MOTOR CO.
