Ford
>>
2011
>>
Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Grounds
>>
G300, G301
G300, G301

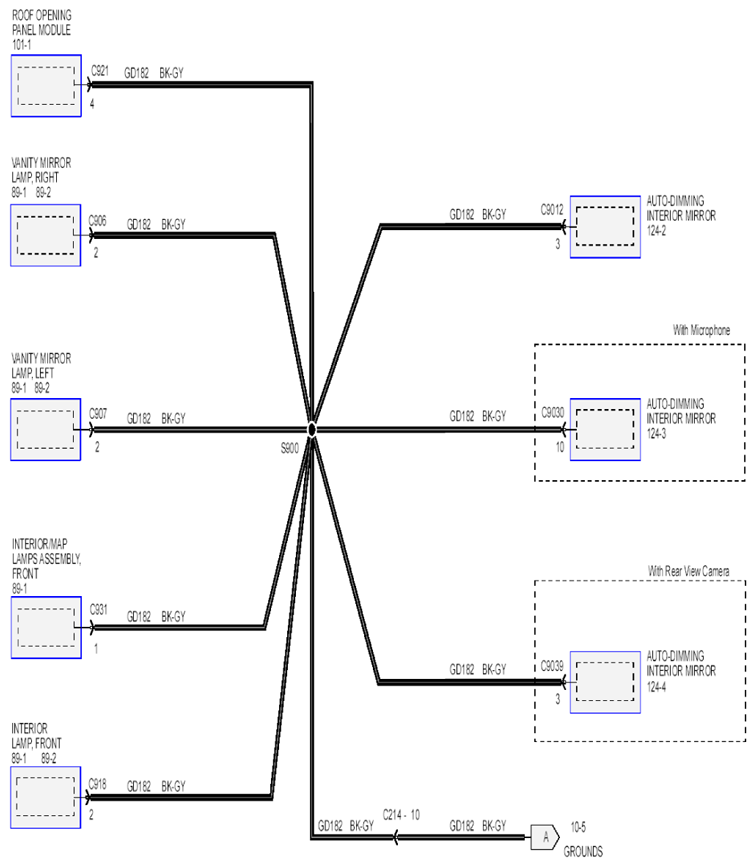

Fig 1: Vehicle Grounds Schematic (5 Of 10)
Courtesy of FORD MOTOR CO.

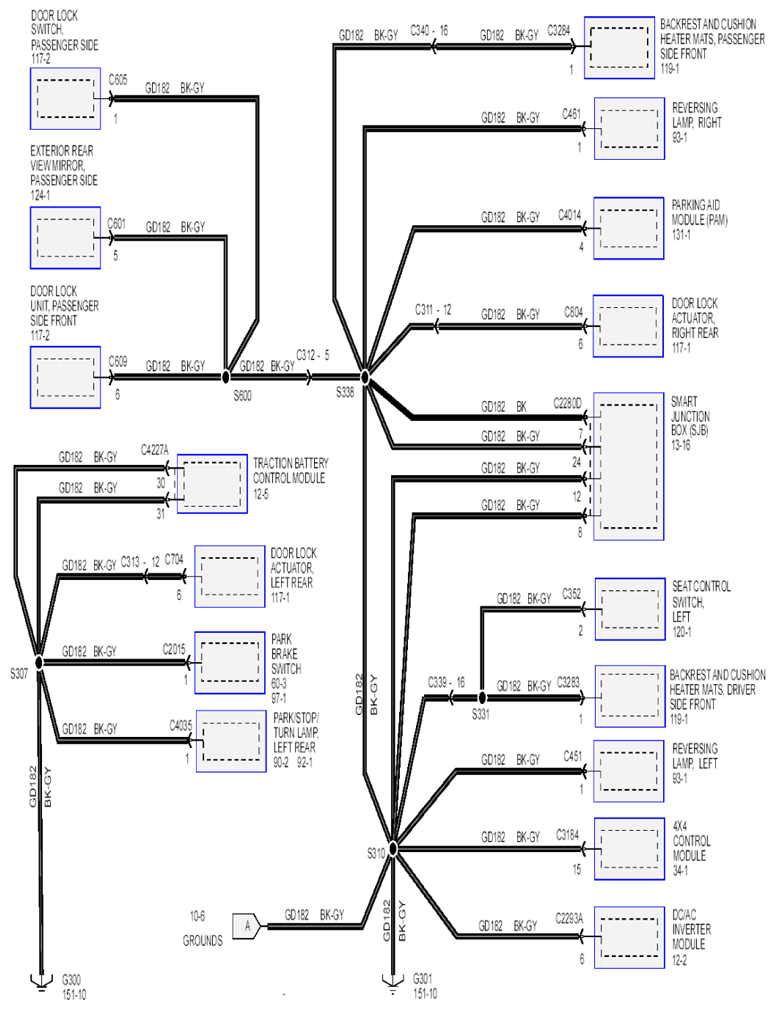

Fig 2: Vehicle Grounds Schematic (6 Of 10)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
