Home >> Ford >> 2011 >> Escape Hybrid, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Hybrid) >> Grounds >> G202, G203, G204, G205

G202, G203, G204, G205

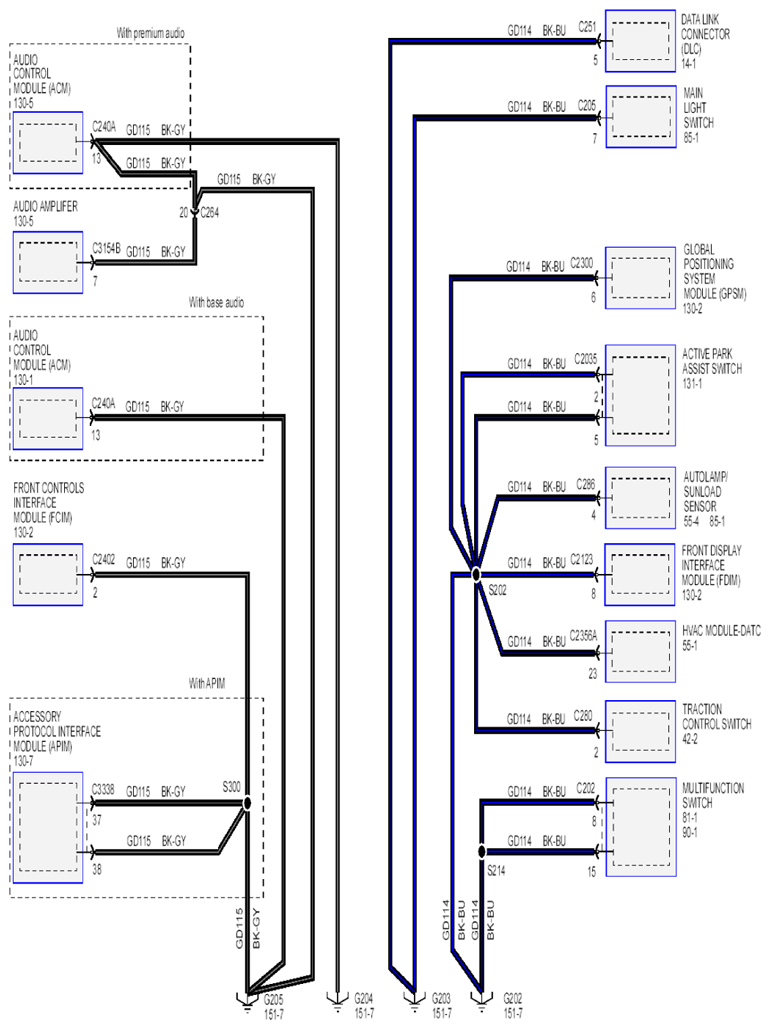

Fig 1: Vehicle Grounds Schematic (4 Of 10)

G07855787

Courtesy of FORD MOTOR CO.
