Home >> Ford >> 2011 >> Escape Hybrid, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams (Hybrid) >> Grounds >> G104, G105

G104, G105

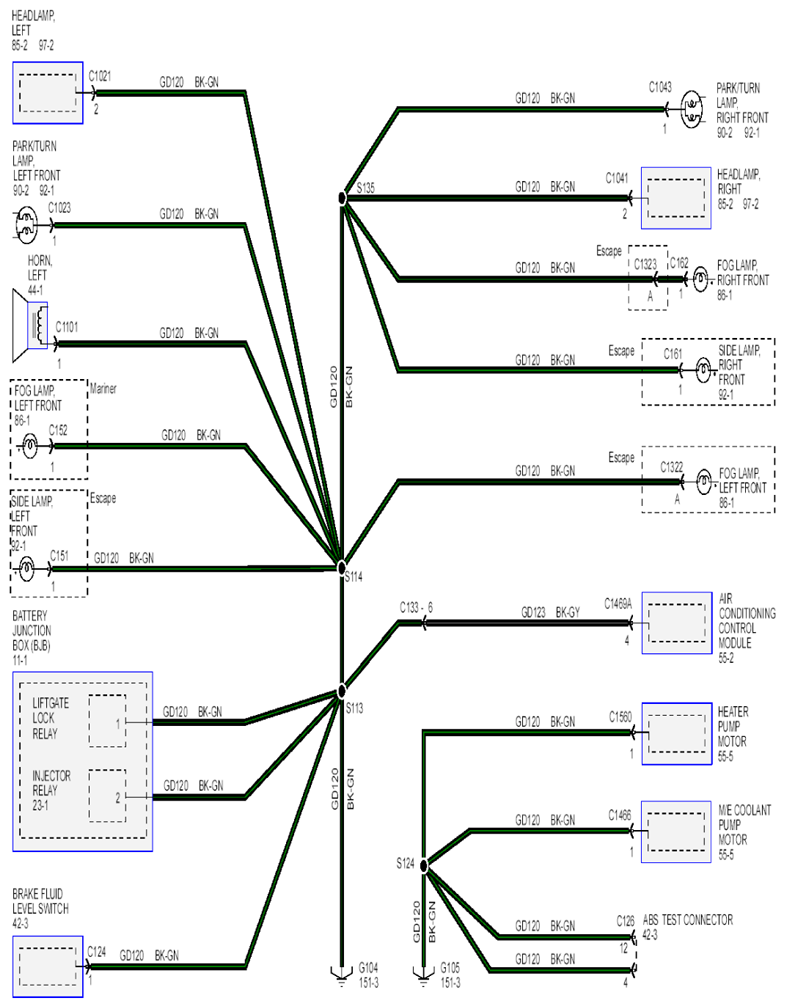

Fig 1: Vehicle Grounds Schematic (2 Of 10)

G07855785

Courtesy of FORD MOTOR CO.
