Electronic Engine Controls - 2.5L

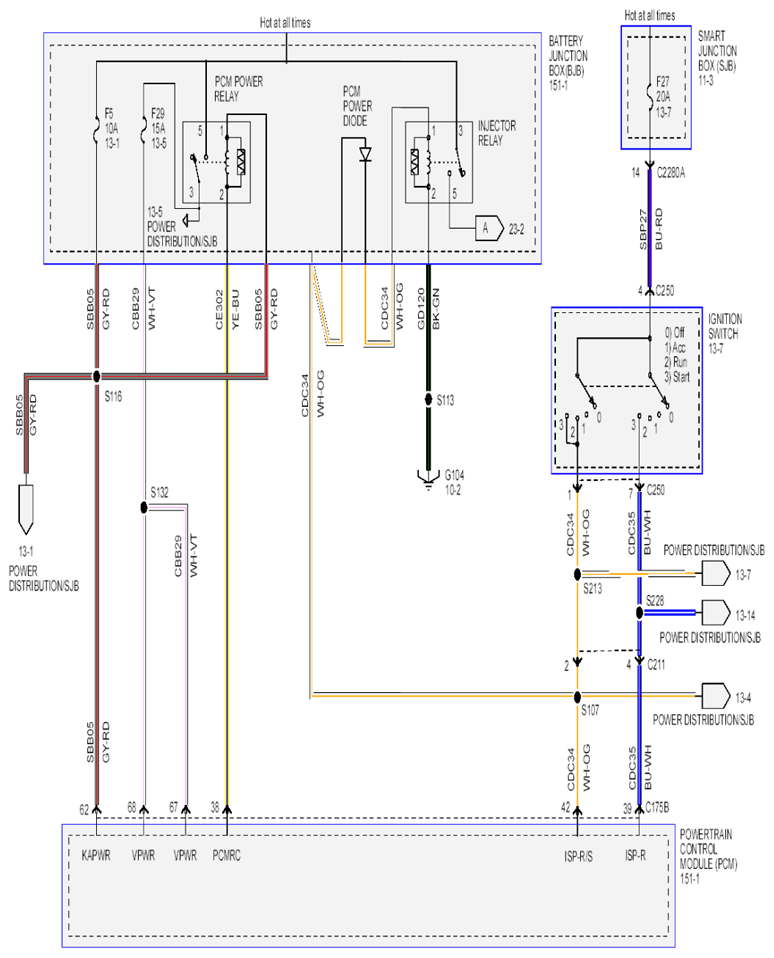

Fig 1: Electronic Engine Controls - 2.5L (1 Of 8)

G07855823

Courtesy of FORD MOTOR CO.

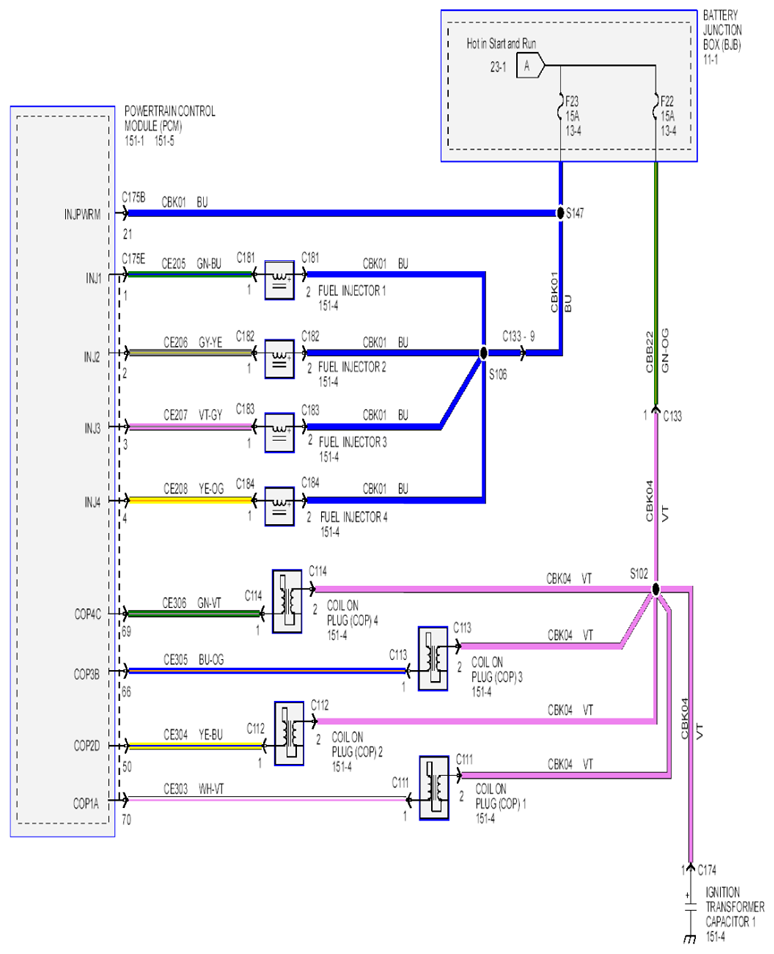

Fig 2: Electronic Engine Controls - 2.5L (2 Of 8)

G07855824

Courtesy of FORD MOTOR CO.

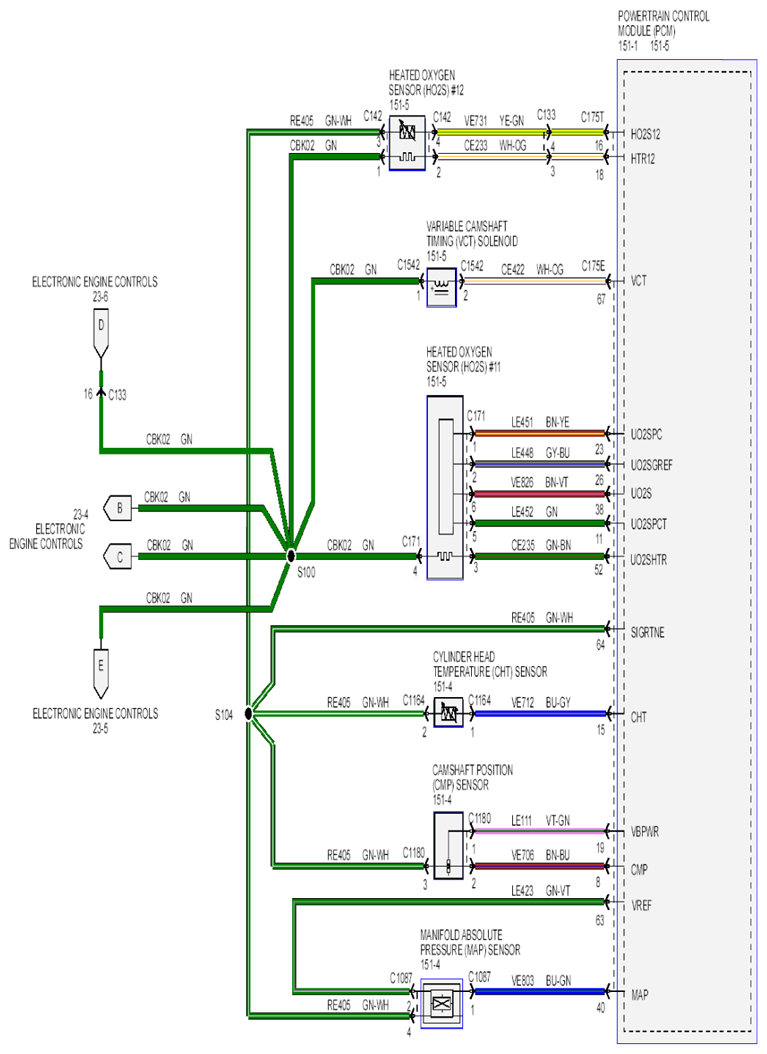

Fig 3: Electronic Engine Controls - 2.5L (3 Of 8)

G07855825

Courtesy of FORD MOTOR CO.

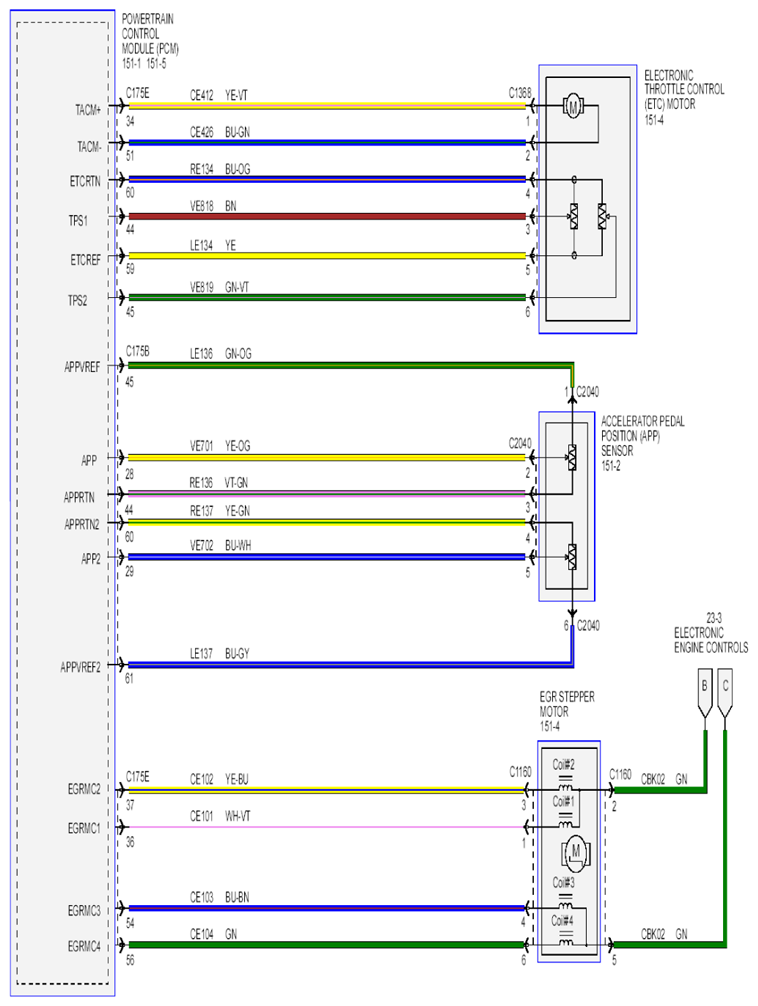

Fig 4: Electronic Engine Controls - 2.5L (4 Of 8)

G07855826

Courtesy of FORD MOTOR CO.

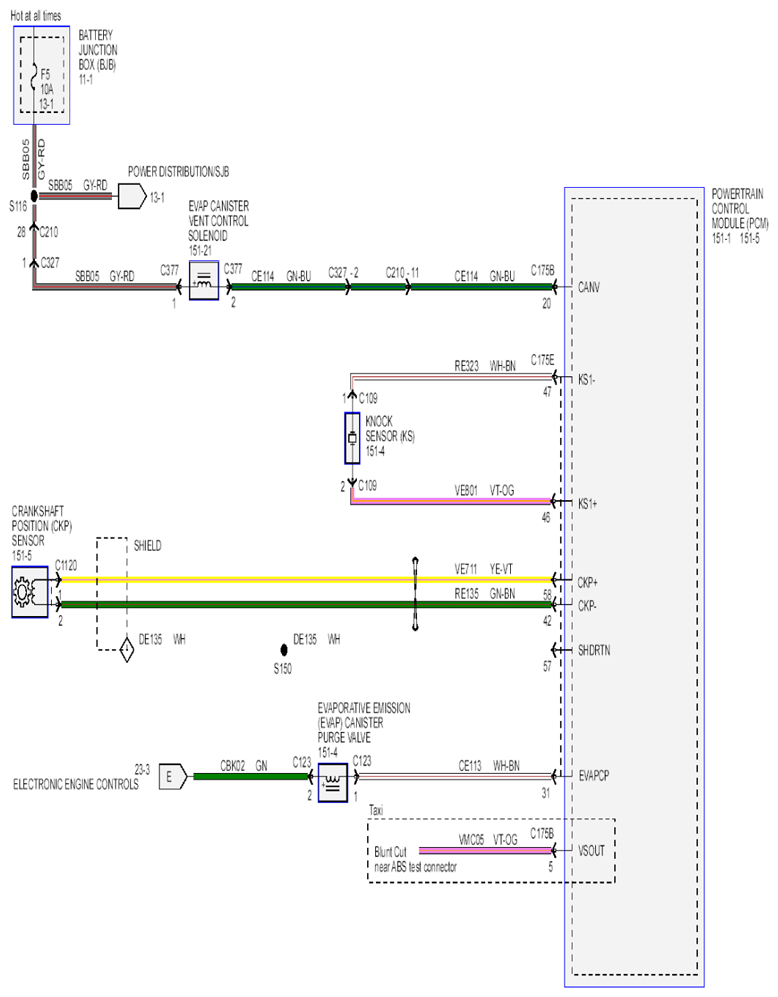

Fig 5: Electronic Engine Controls - 2.5L (5 Of 8)

G07855827

Courtesy of FORD MOTOR CO.

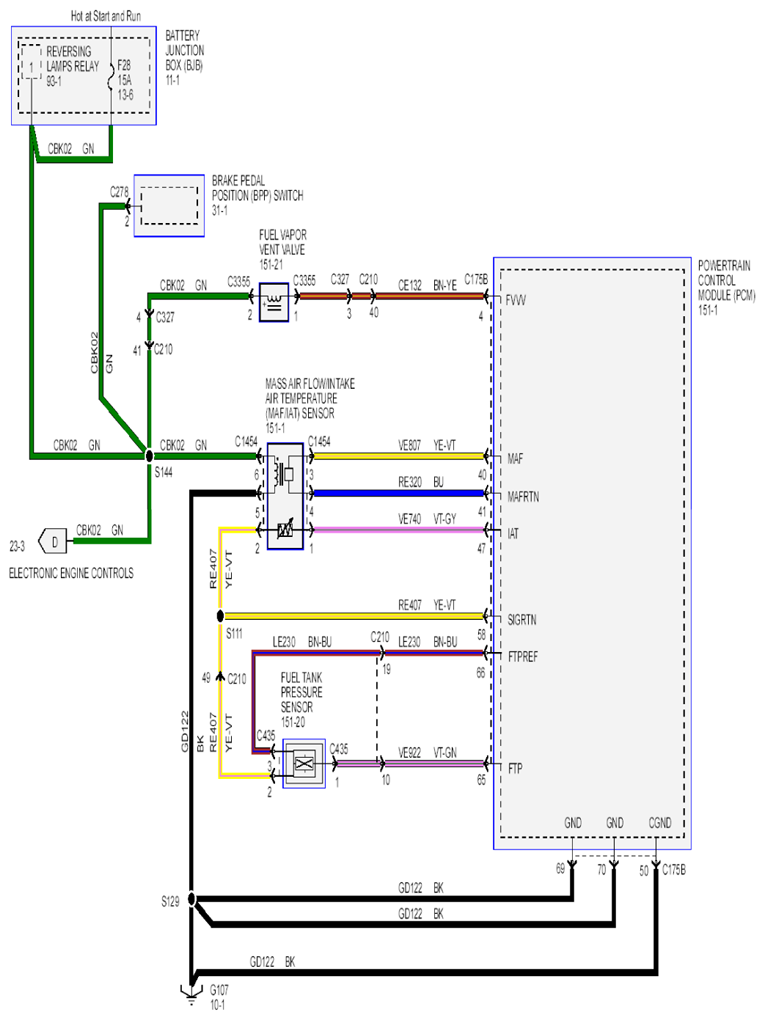

Fig 6: Electronic Engine Controls - 2.5L (6 Of 8)

G07855828

Courtesy of FORD MOTOR CO.

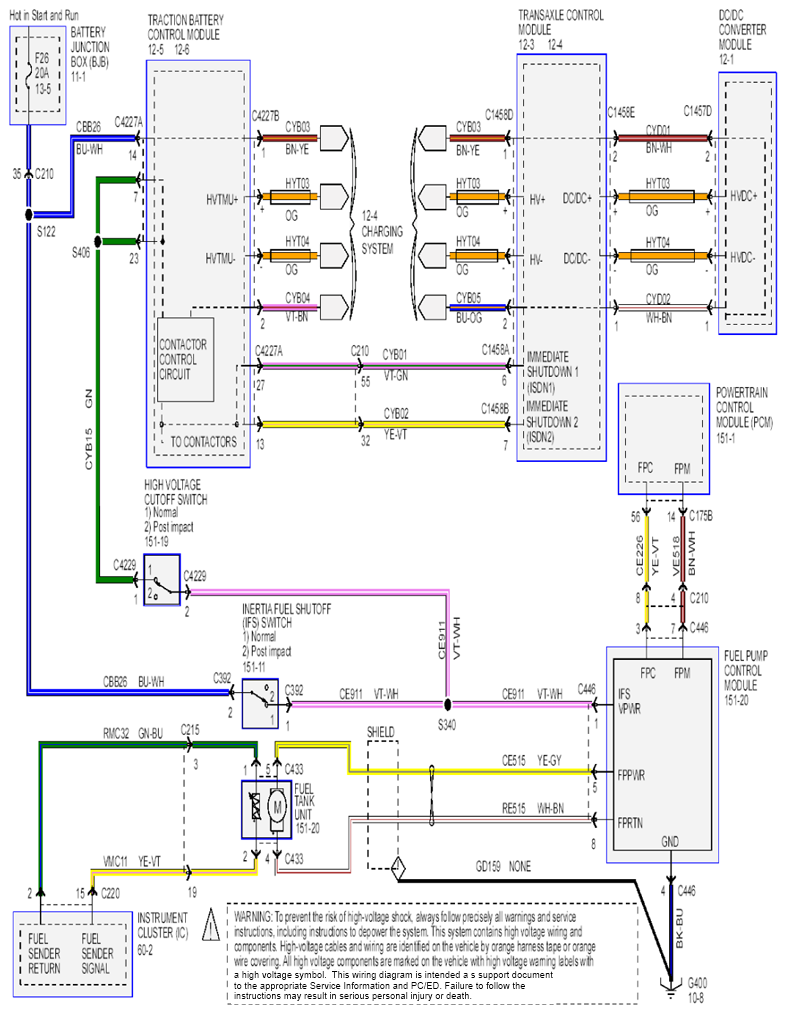

Fig 7: Electronic Engine Controls - 2.5L (7 Of 8)

G07855829

Courtesy of FORD MOTOR CO.

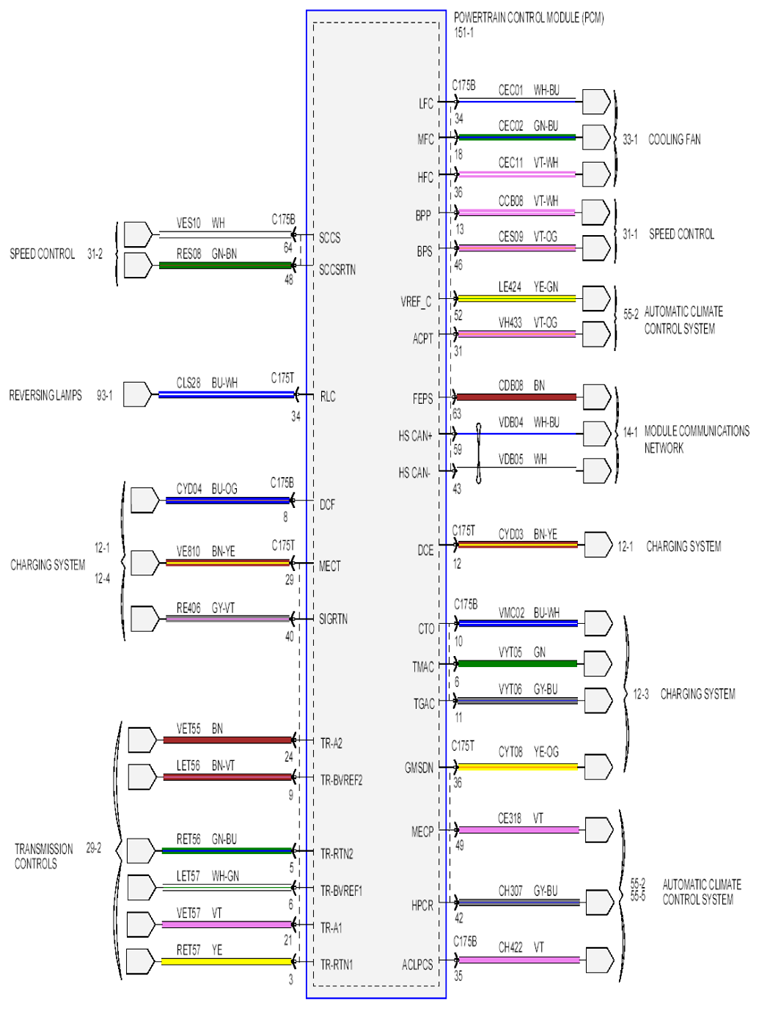

Fig 8: Electronic Engine Controls - 2.5L (8 Of 8)

G07855830

Courtesy of FORD MOTOR CO.
