Daytime Running Lamps
Daytime Running Lamps

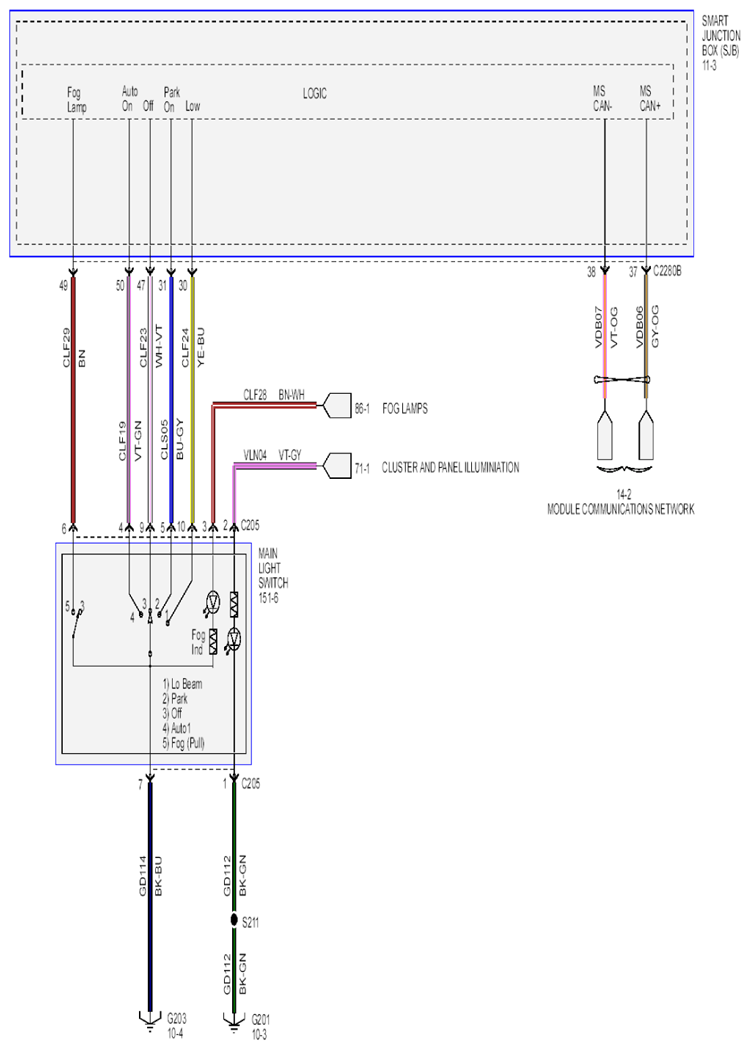

Fig 1: Daytime Running Lamps Circuit (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Daytime Running Lamps Circuit (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
