Cruise Control

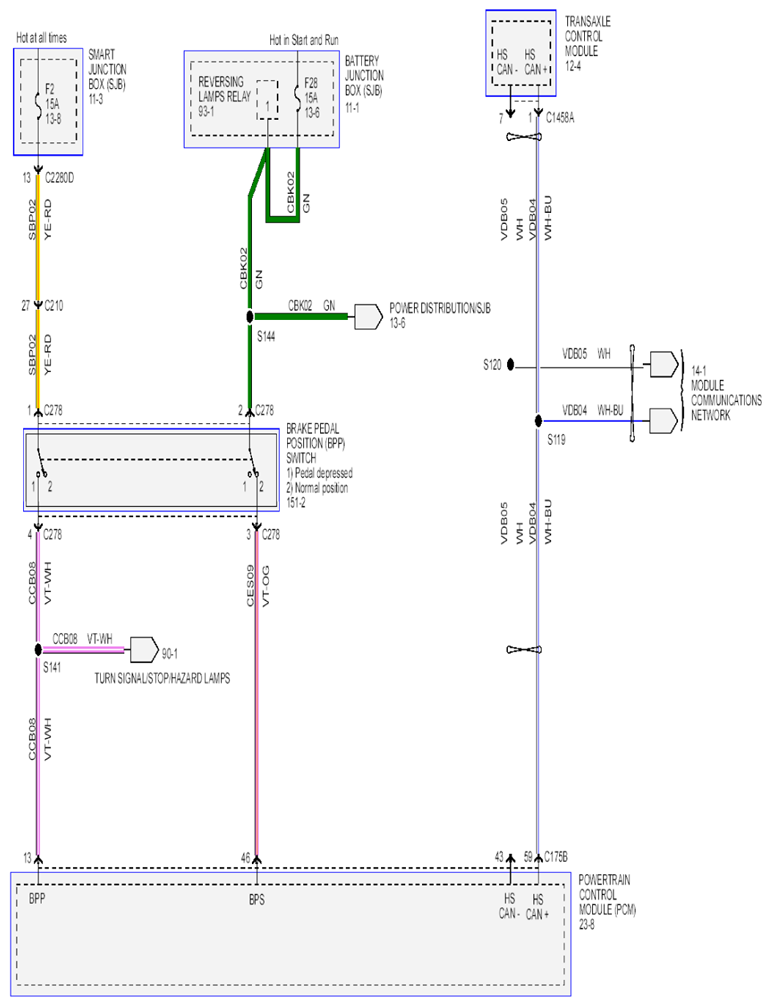

Fig 1: Cruise Control Circuit (1 Of 3)
G07855833Courtesy of FORD MOTOR CO.

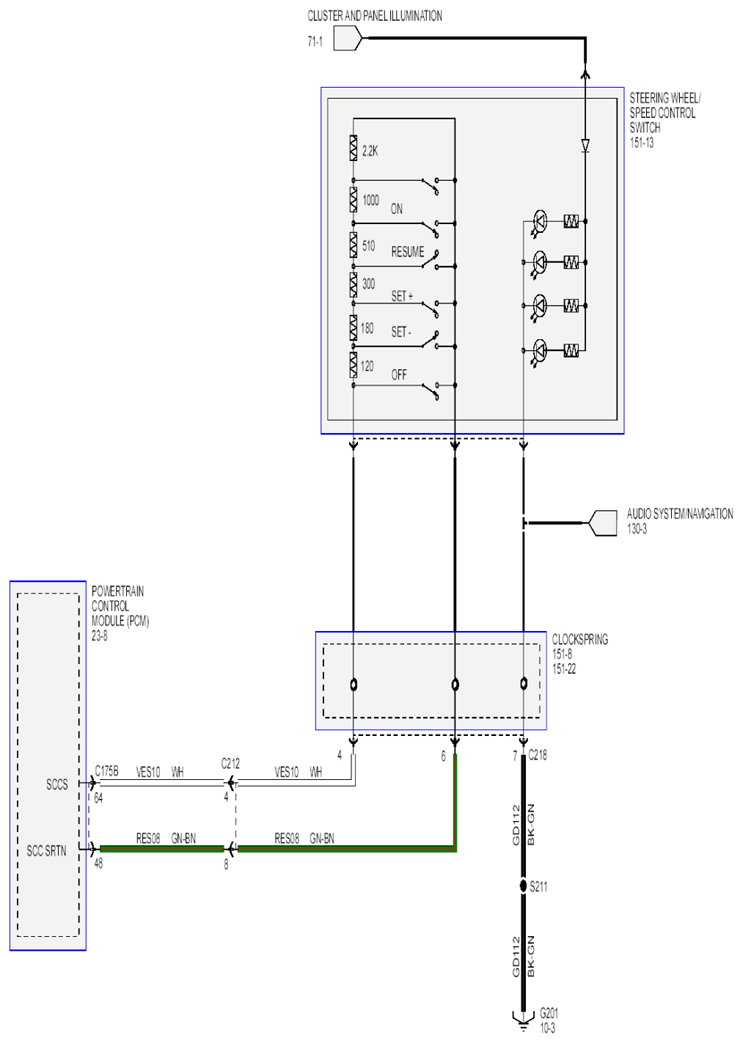

Fig 2: Cruise Control Circuit (2 Of 3)
G07855834Courtesy of FORD MOTOR CO.

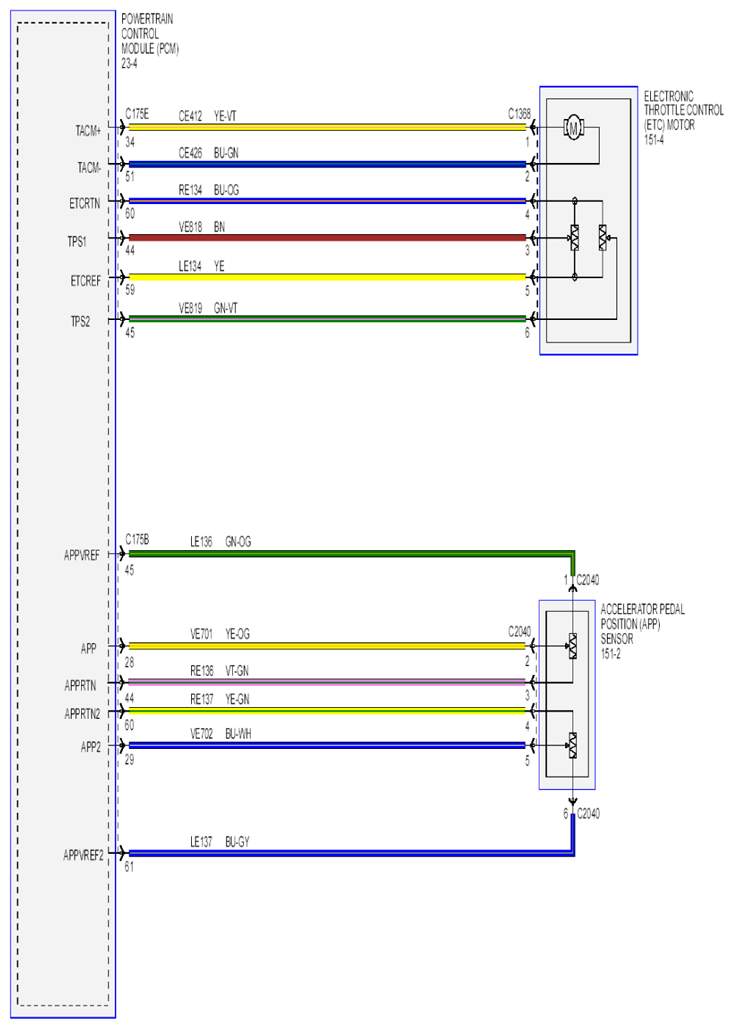

Fig 3: Cruise Control Circuit (3 Of 3)
G07855835Courtesy of FORD MOTOR CO.
