Escape Hybrid, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid)
>>
Cluster and Panel Illumination
Cluster and Panel Illumination

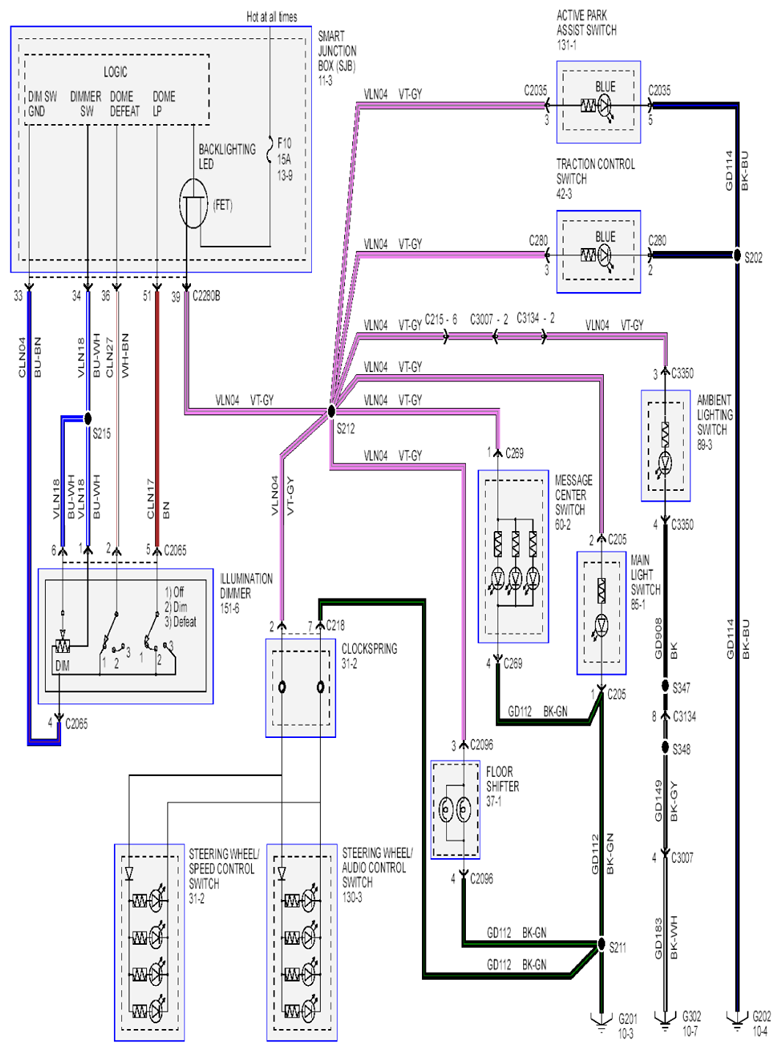

Fig 1: Cluster And Panel Illumination Circuit
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
