Charging System

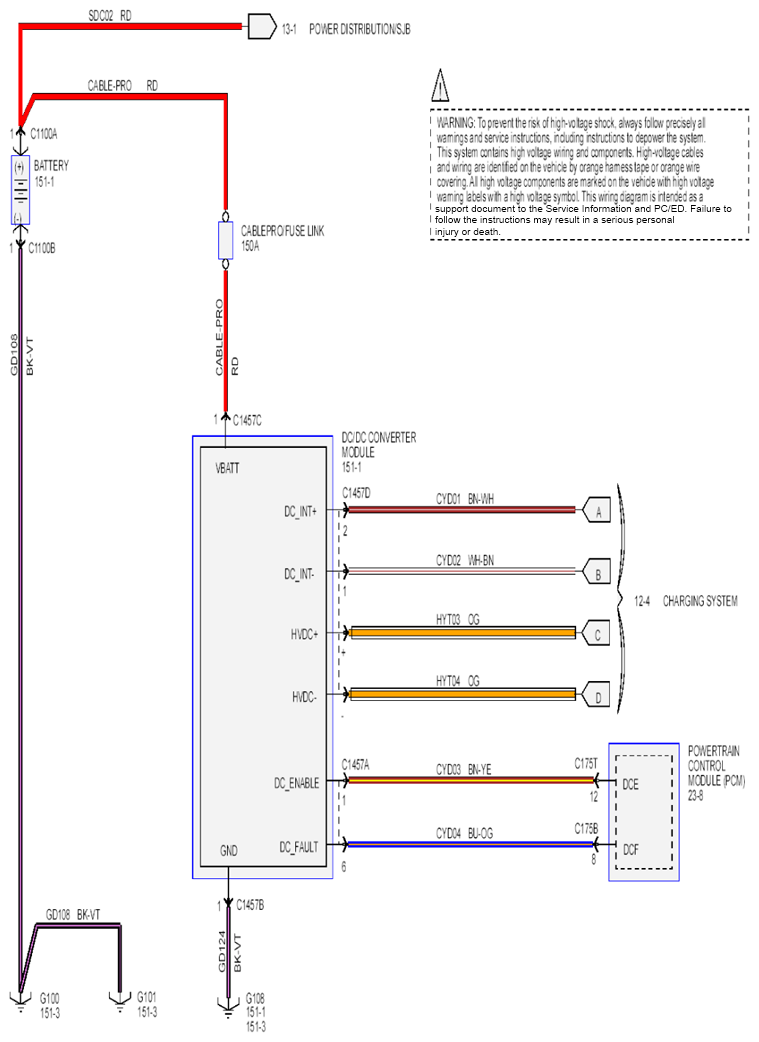

Fig 1: Charging System Schematic (1 Of 6)

G07855794

Courtesy of FORD MOTOR CO.

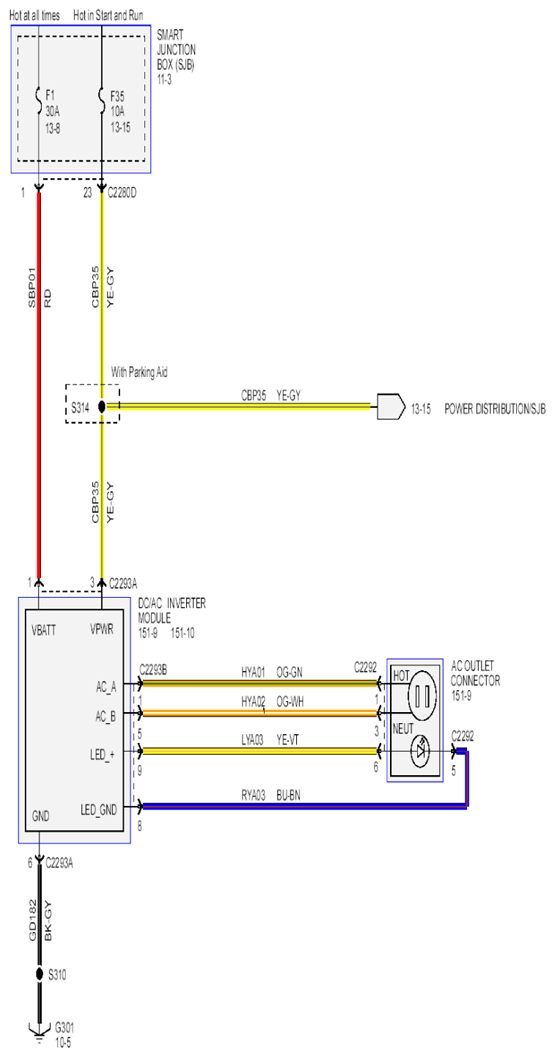

Fig 2: Charging System Schematic (2 Of 6)

G07855795

Courtesy of FORD MOTOR CO.

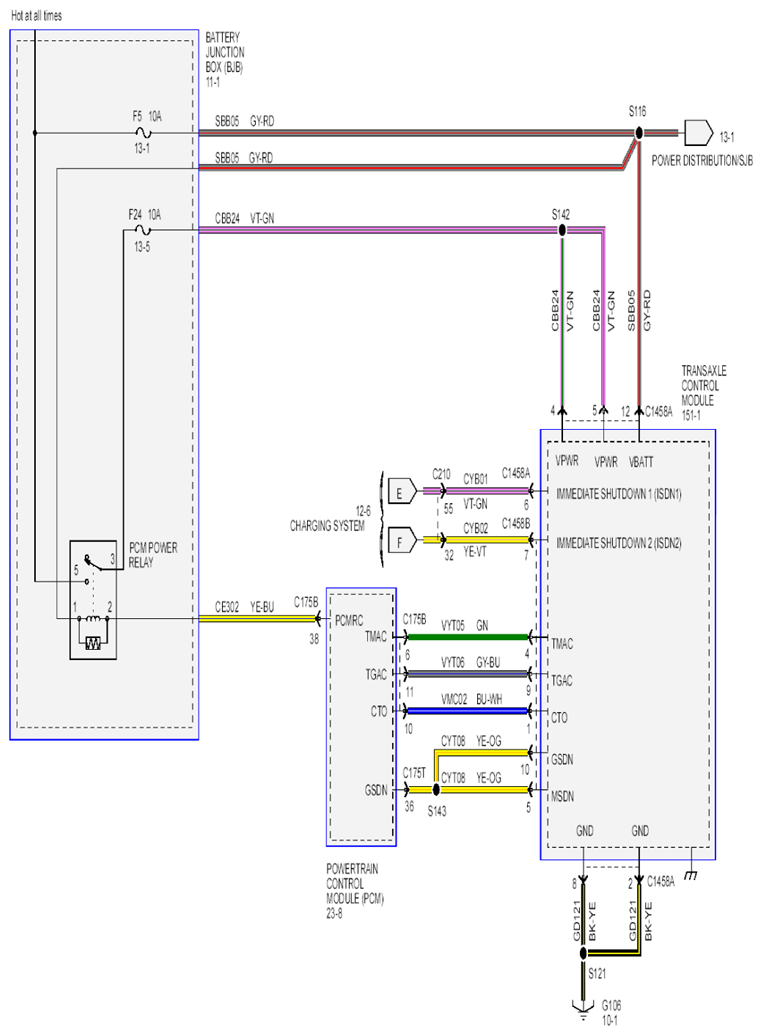

Fig 3: Charging System Schematic (3 Of 6)

G07855796

Courtesy of FORD MOTOR CO.

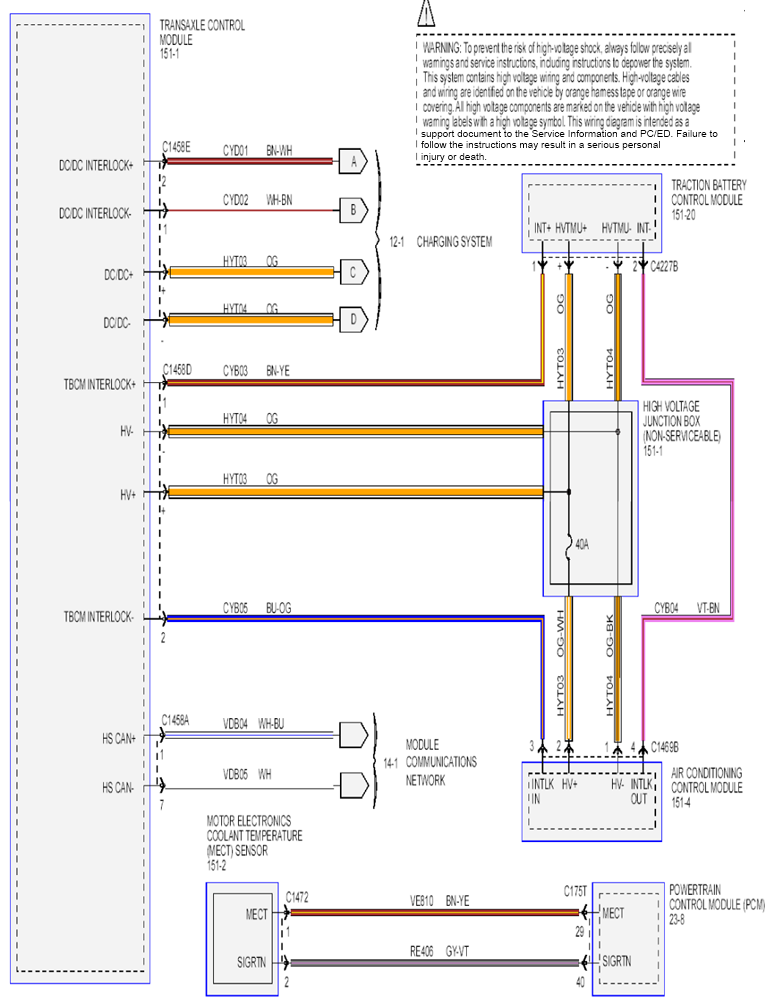

Fig 4: Charging System Schematic (4 Of 6)

G07855797

Courtesy of FORD MOTOR CO.

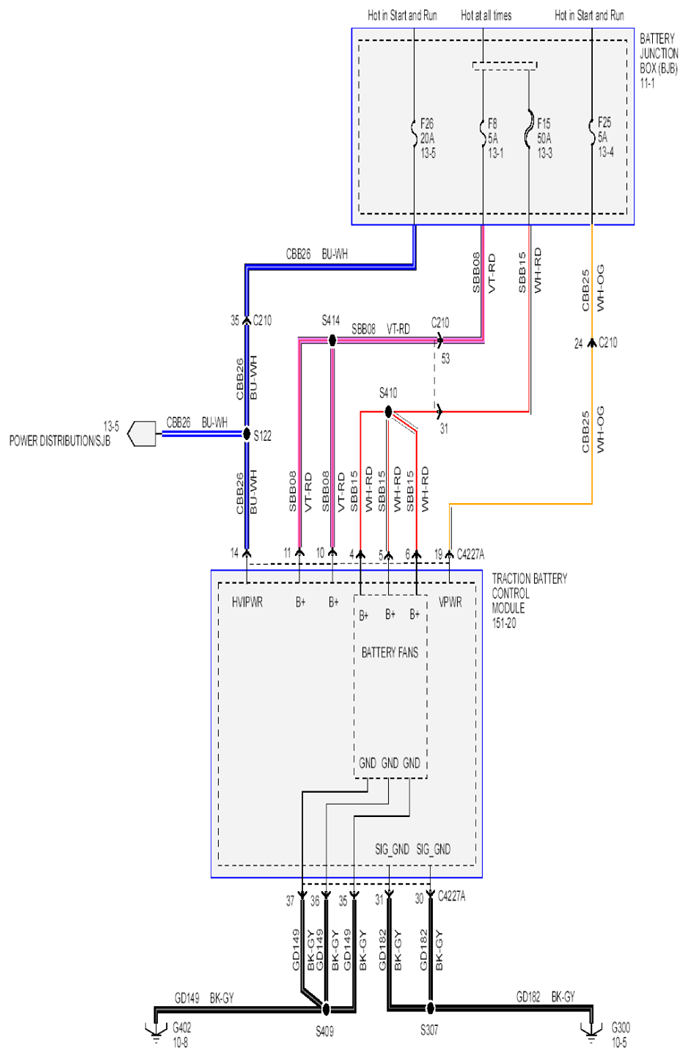

Fig 5: Charging System Schematic (5 Of 6)

G07855798

Courtesy of FORD MOTOR CO.

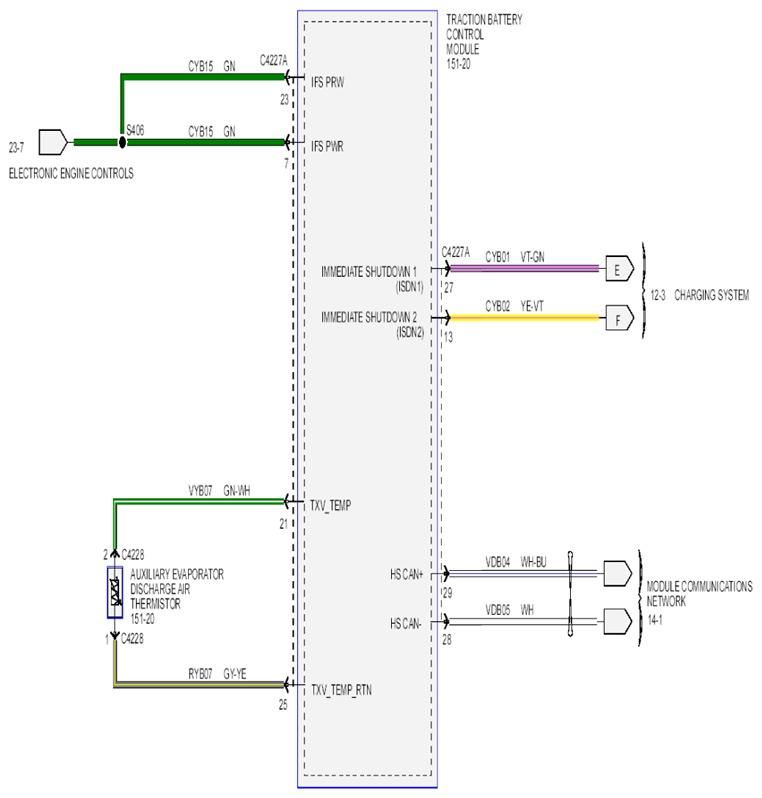

Fig 6: Charging System Schematic (6 Of 6)

G07855799

Courtesy of FORD MOTOR CO.
