Automatic Climate Control System
Automatic Climate Control System

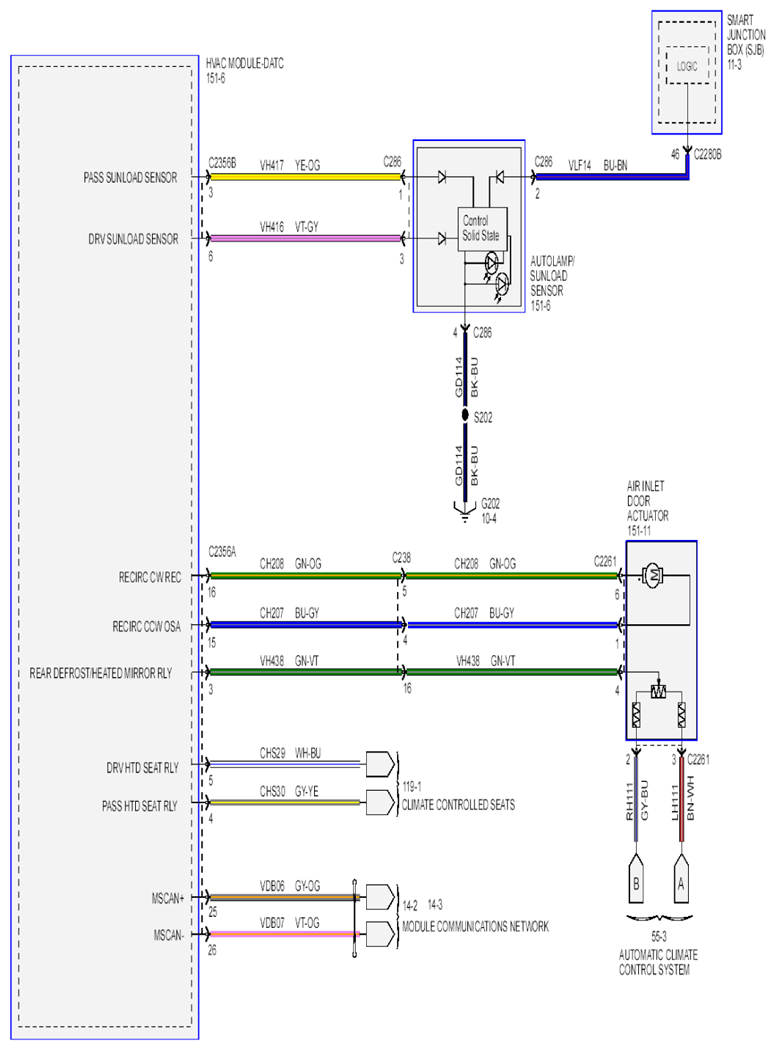

Fig 1: Automatic Climate Control System Circuit (1 Of 5)
Courtesy of FORD MOTOR CO.

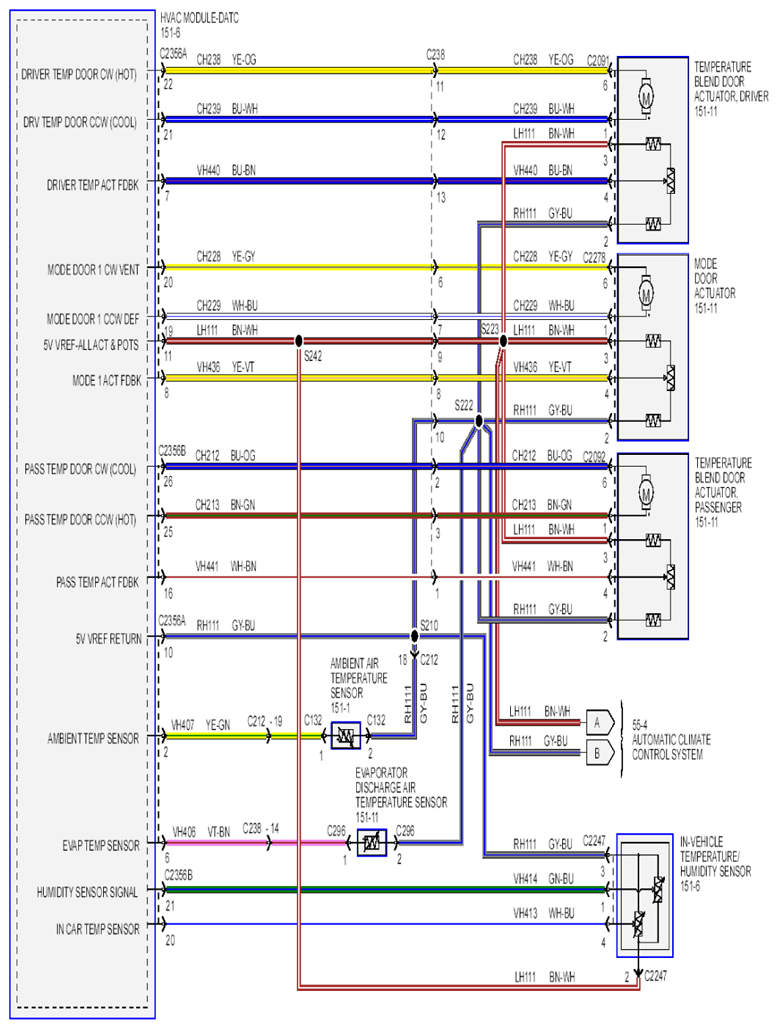

Fig 2: Automatic Climate Control System Circuit (2 Of 5)
Courtesy of FORD MOTOR CO.

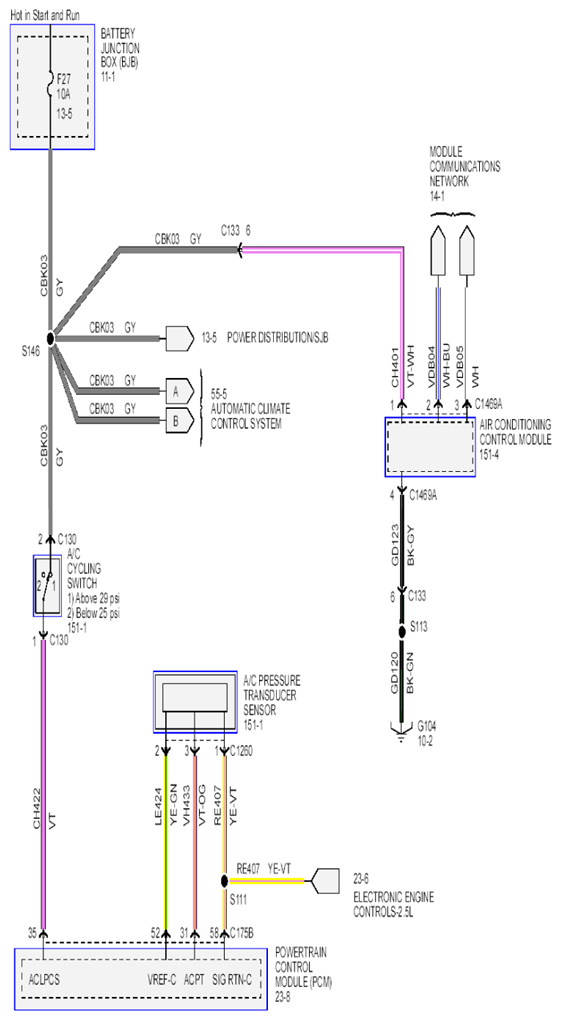

Fig 3: Automatic Climate Control System Circuit (2 Of 5)
Courtesy of FORD MOTOR CO.

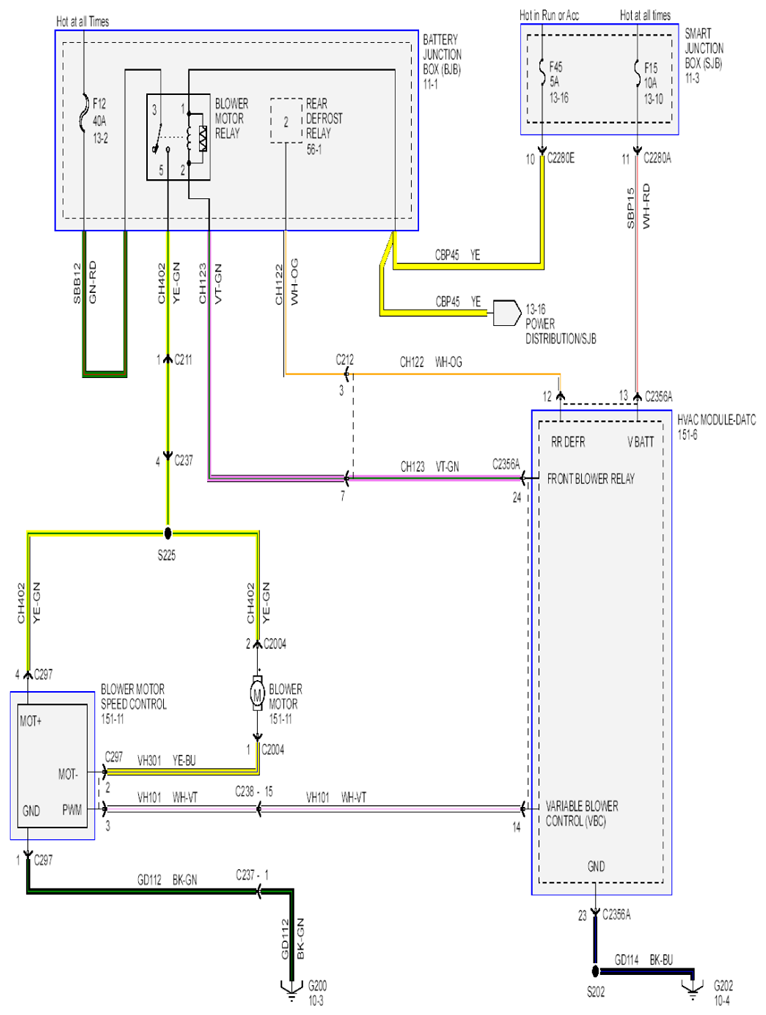

Fig 4: Automatic Climate Control System Circuit (3 Of 5)
Courtesy of FORD MOTOR CO.

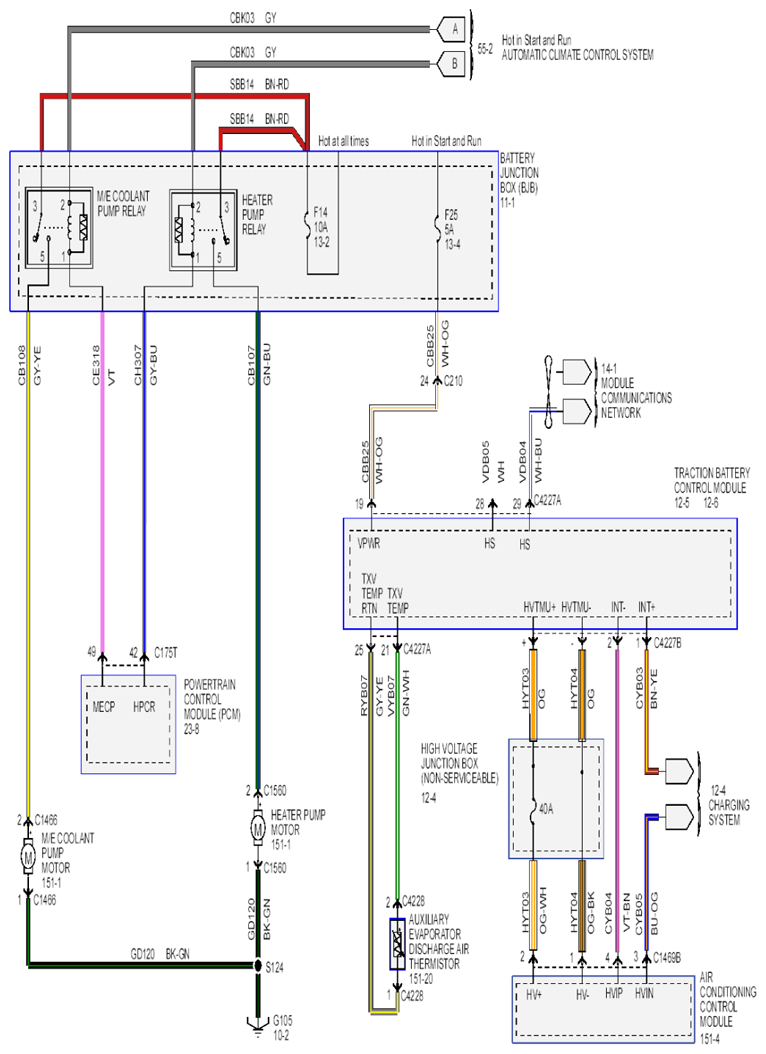

Fig 5: Automatic Climate Control System Circuit (4 Of 5)
Courtesy of FORD MOTOR CO.
