With Audio Amplifier

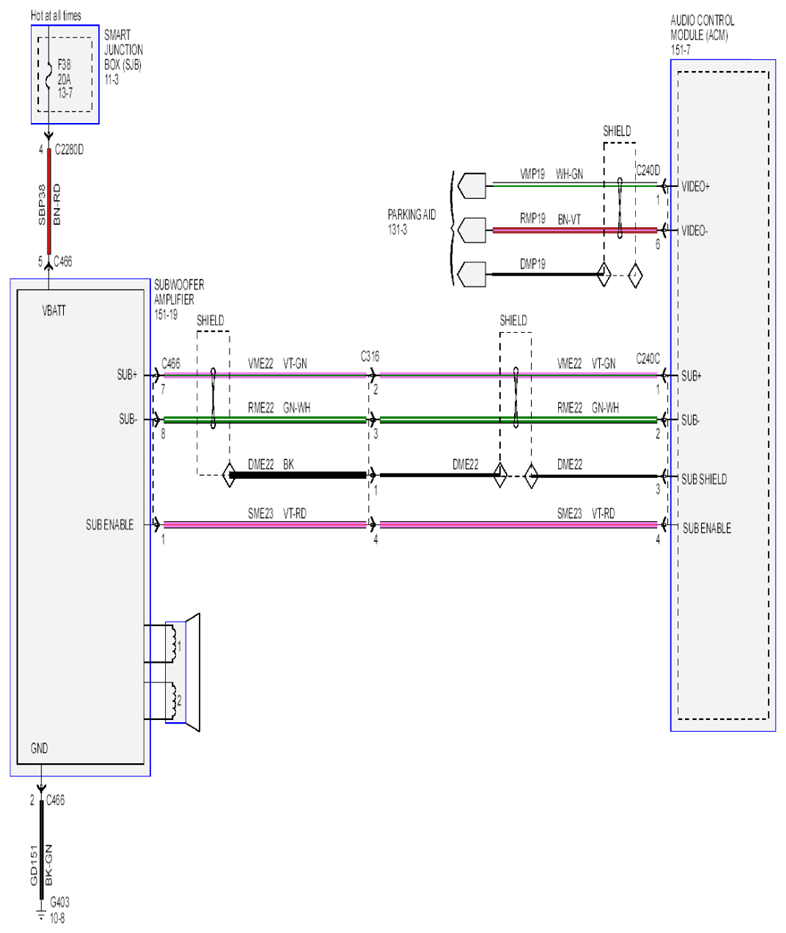

Fig 1: Audio System_Navigation - With Audio Amplifier Circuit (4 Of 9)
G07855890Courtesy of FORD MOTOR CO.

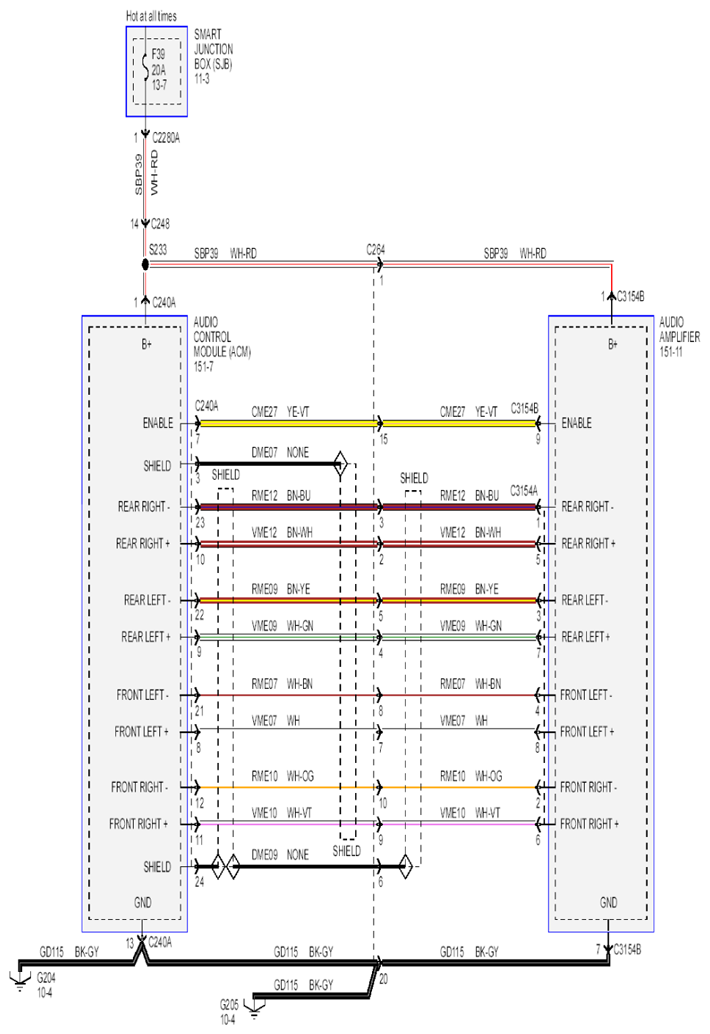

Fig 2: Audio System_Navigation - With Audio Amplifier Circuit (5 Of 9)
G07855891Courtesy of FORD MOTOR CO.
