Audio System_Navigation: Sync

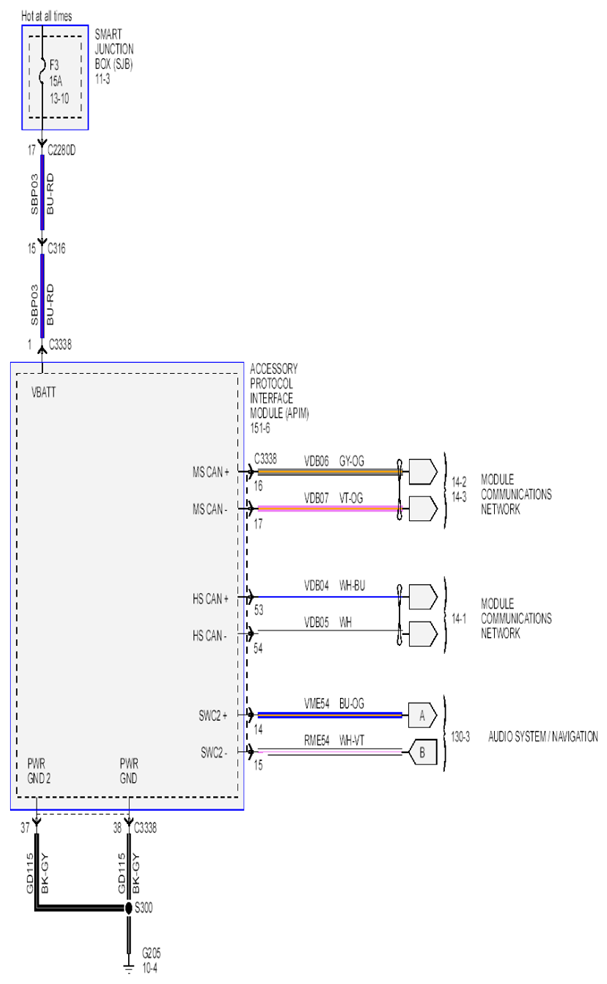

Fig 1: Audio System_Navigation - SYNC Circuit (7 Of 9)
G07855893Courtesy of FORD MOTOR CO.

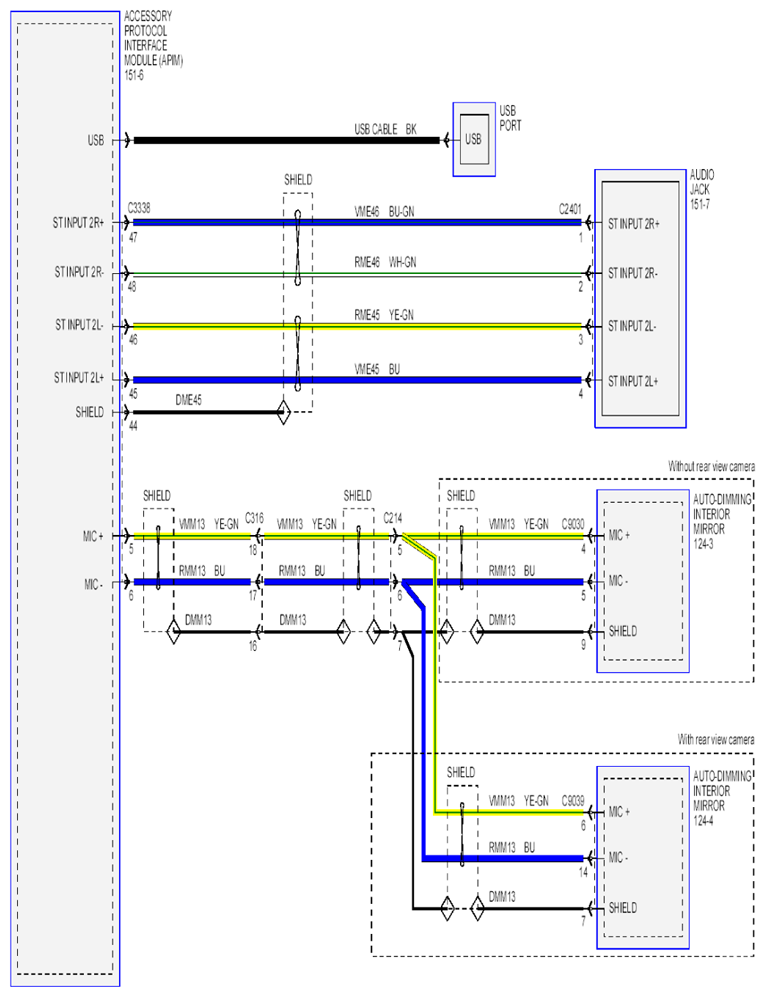

Fig 2: Audio System_Navigation - SYNC Circuit (8 Of 9)
G07855894Courtesy of FORD MOTOR CO.

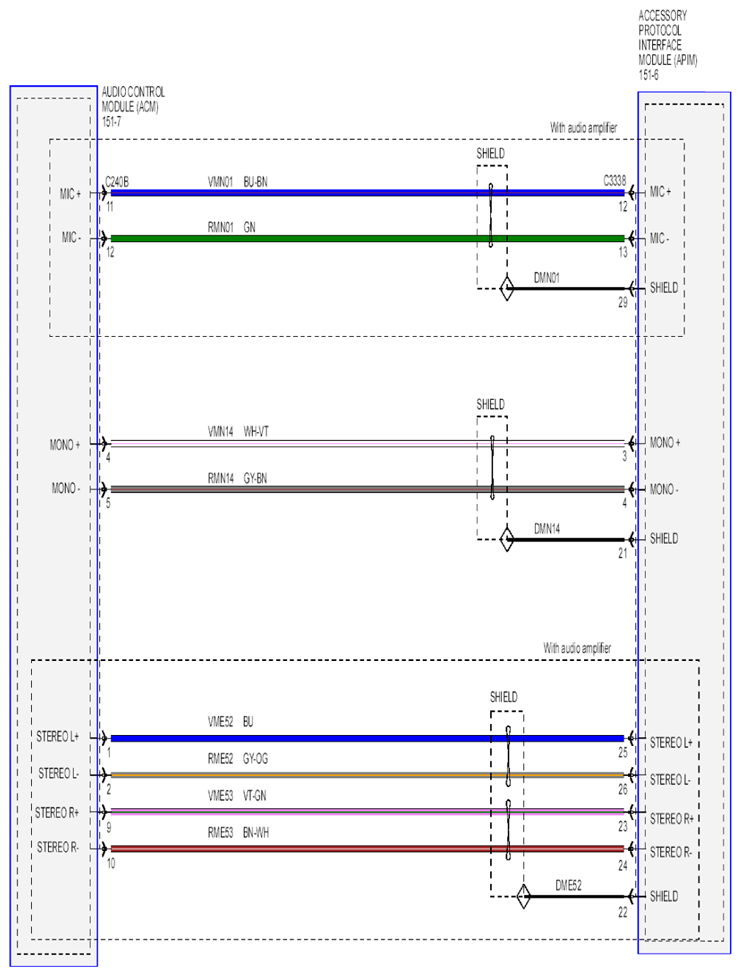

Fig 3: Audio System_Navigation - SYNC Circuit (9 Of 9)
G07855895Courtesy of FORD MOTOR CO.
