Audio System_Navigation: Base

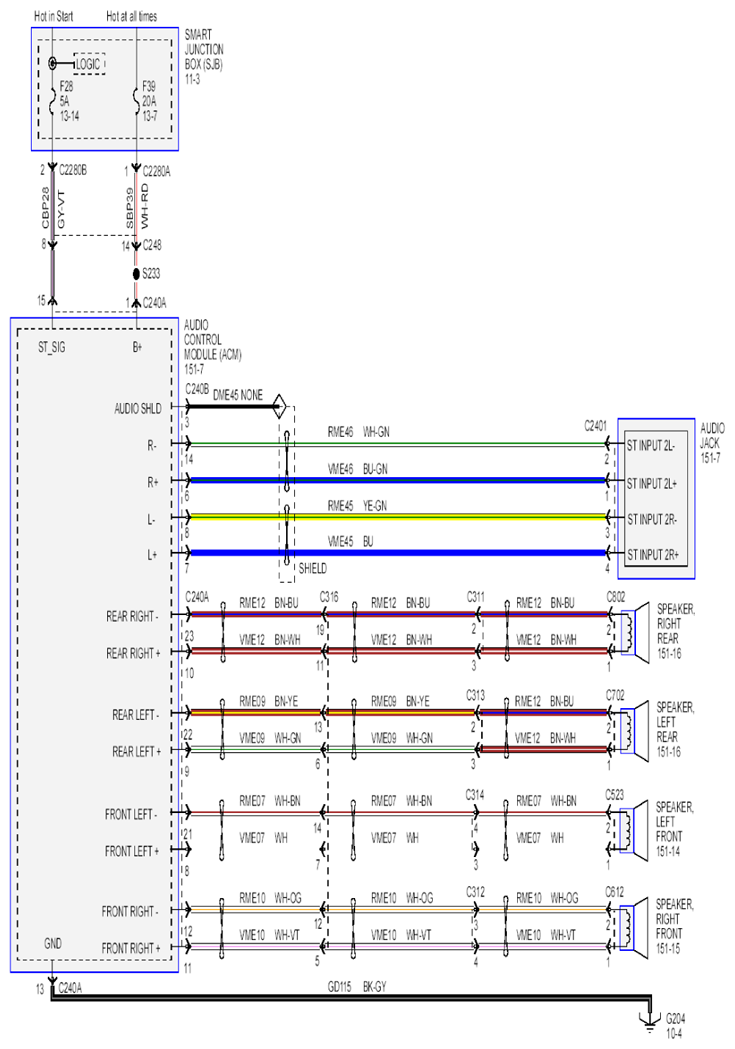

Fig 1: Audio System_Navigation - Base Circuit (1 Of 9)
G07855887Courtesy of FORD MOTOR CO.

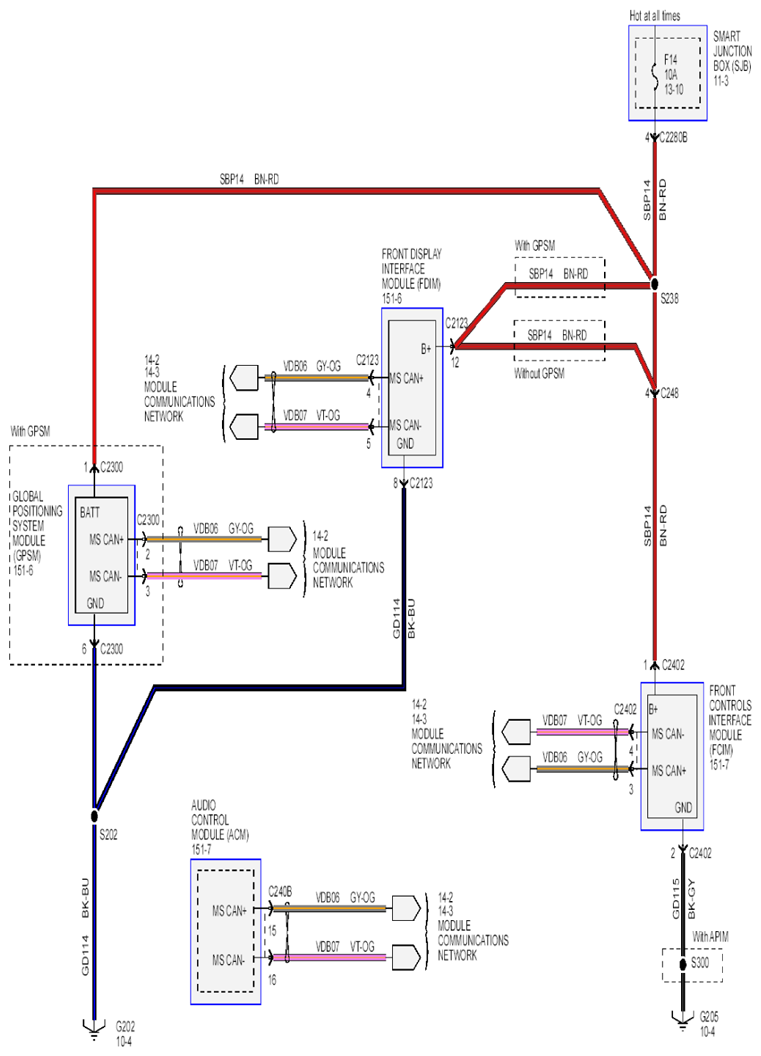

Fig 2: Audio System_Navigation - Base Circuit (2 Of 9)
G07855888Courtesy of FORD MOTOR CO.

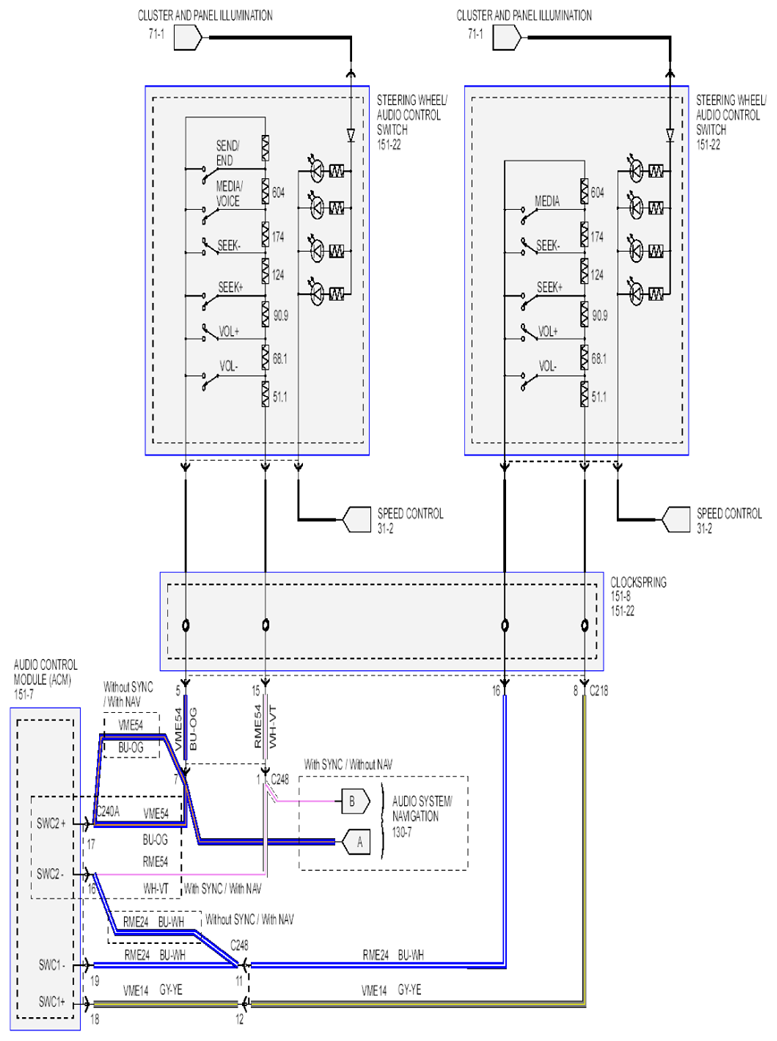

Fig 3: Audio System_Navigation - Base Circuit (3 Of 9)
G07855889Courtesy of FORD MOTOR CO.
