OEM Wiring Diagrams (Hybrid)
>>
Audio System_Navigation
>>
Audio Amplifier
Audio Amplifier

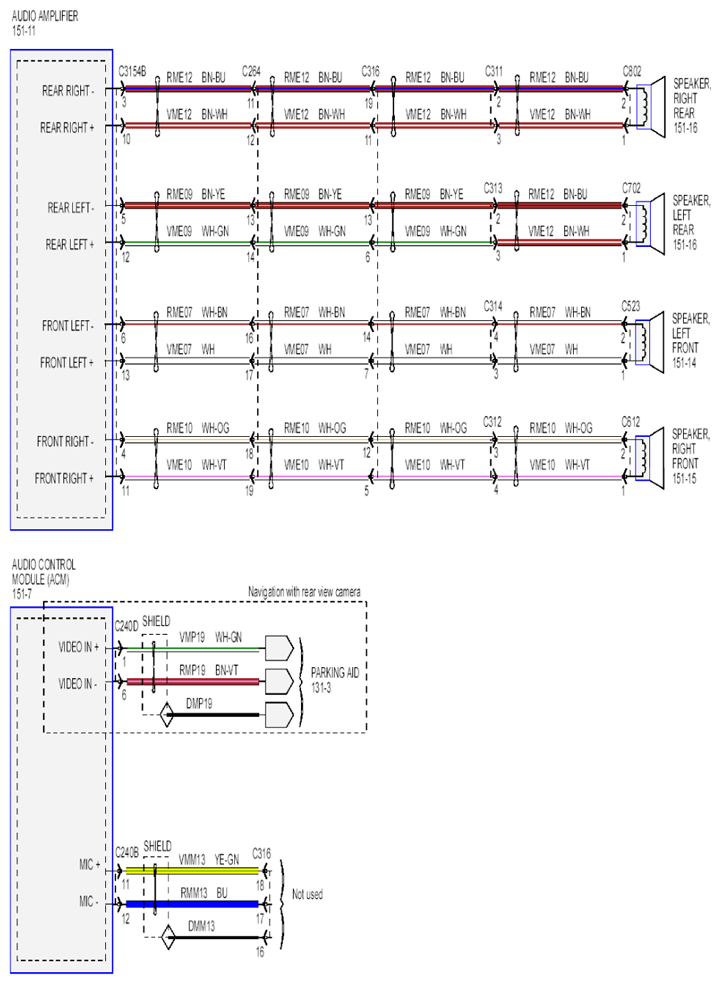

Fig 1: Audio System_Navigation - Audio Amplifier Circuit (6 Of 9)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
