Valve Springs: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Check the seating of the valve collet.

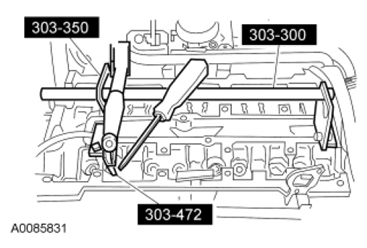

    Fig 1: Remove/Install Valve Spring Using Special Tools
    G07439277Courtesy of FORD MOTOR CO.
  1. Using the Valve Spring Compressors, install the valve spring.
    • Insert the valve spring and the valve spring retainer.
    • Compress the valve spring and install the valve collet using some multi-purpose grease and a small screwdriver.
  2. Disconnect the compressed air supply.
  3. Repeat the appropriate removal and installation steps for all of the other cylinders.
  4. Install the spark plugs. For additional information, refer to ENGINE IGNITION - 2.5L article.
  5. Coat the valve tappets with clean engine oil and insert them.
  6. Install the camshafts. For additional information, refer to CAMSHAFTS  in this service information.
