Timing Drive Components: Installation

WARNING: This page is about a different variant/trim than selected.

Install the camshaft sprockets and the bolts. Do not tighten the bolts at this time.

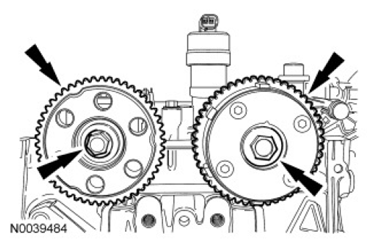

Fig 1: View Of Camshaft Sprockets Bolts
Courtesy of FORD MOTOR CO.
Install the timing chain guide and the 2 bolts.
- To install, tighten to 10 Nm (89 lb-in).

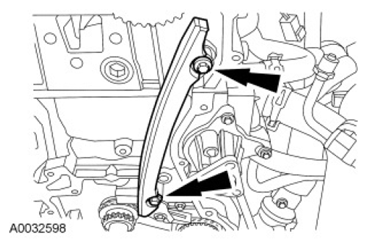

Fig 2: Locating LH Timing Chain Guide Bolts
Courtesy of FORD MOTOR CO.
Install the timing chain.

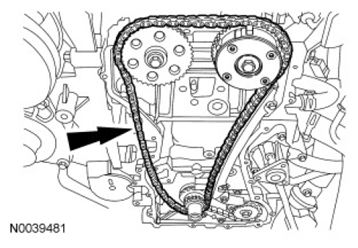

Fig 3: View Of Timing Chain
Courtesy of FORD MOTOR CO.
Install the timing chain tensioner arm.

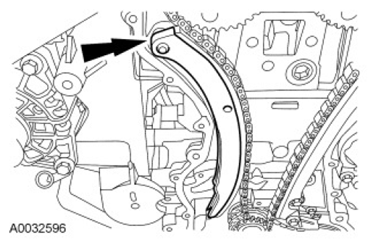

Fig 4: Locating RH Timing Chain Guide
Courtesy of FORD MOTOR CO.

NOTE: If the timing chain plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.

NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

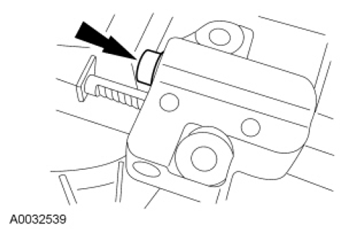

Fig 5: Compressing Timing Chain Tensioner Plunger

Courtesy of FORD MOTOR CO.

Using the edge of a vise, compress the timing chain tensioner plunger.
Using a small pick, push back and hold the ratchet mechanism.

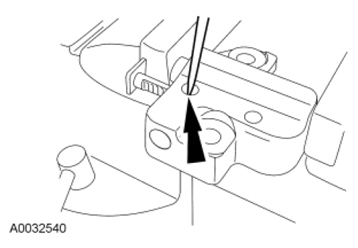

Fig 6: Pushing Ratchet Mechanism
Courtesy of FORD MOTOR CO.
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

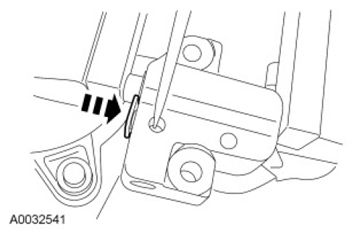

Fig 7: Pushing Ratchet Arm
Courtesy of FORD MOTOR CO.

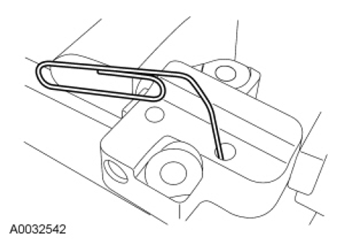

Install a paper clip into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Fig 8: Holding Ratchet Mechanism
Courtesy of FORD MOTOR CO.
Install the timing chain tensioner and the 2 bolts. Remove the paper clip to release the piston.
- Tighten to 10 Nm (89 lb-in).

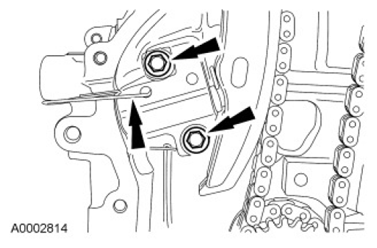

Fig 9: Locating Timing Chain Tensioner Bolts
Courtesy of FORD MOTOR CO.

NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

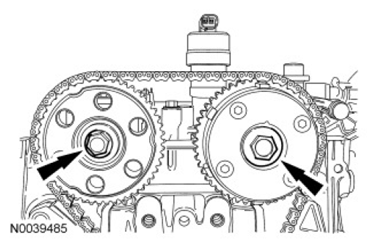

Using the flats on the camshafts to prevent camshaft rotation, tighten the bolts.
- Tighten to 72 Nm (53 lb-ft).

Fig 10: View Of Camshaft Bolts

Courtesy of FORD MOTOR CO.

Install the engine front cover. For additional information, refer to ENGINE FRONT COVER in this service information.
