Intake Manifold (View 2 of 2)

WARNING: This page is about a different variant/trim than selected.

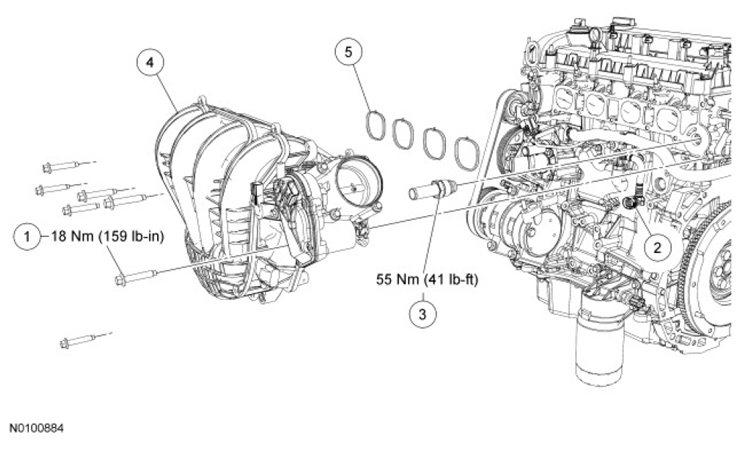

Fig 1: Intake Manifold Replacement Components With Torque Specifications - (2 Of 2)
G07439138Courtesy of FORD MOTOR CO.
INTAKE MANIFOLD PARTS DESCRIPTION CHART

Item Part Number Description
1 W500311 Intake manifold bolt (7 required)
2 6A785 Crankcase vent oil separator tube (part of 6A785)
3 9E470 EGR tube
4 9424 Intake manifold
5 9461 Intake manifold gasket
