Removal and Installation

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Install the Engine Support Bar.

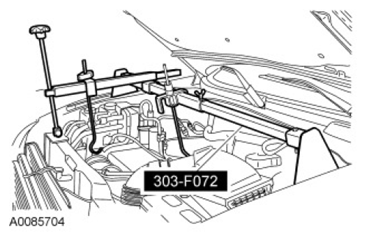

Fig 1: Identifying Engine Support Bar
Courtesy of FORD MOTOR CO.
Remove the engine mount bracket bolt.
- To install, tighten to 115 Nm (85 lb-ft).
Use the Engine Support Bar to raise the engine 25 mm (0.98 in).

Fig 2: Identifying Engine Support Bar
Courtesy of FORD MOTOR CO.
Remove the 3 nuts and the engine mount bracket.
- To install, tighten to 115 Nm (85 lb-ft).
Remove the 3 bolts and the engine mount.
- To install, tighten to 48 Nm (35 lb-ft).
To install, reverse the removal procedure.
