Oil Pan, Oil Pump Screen and Pickup Tube
WARNING: This page is about a different variant/trim than selected.

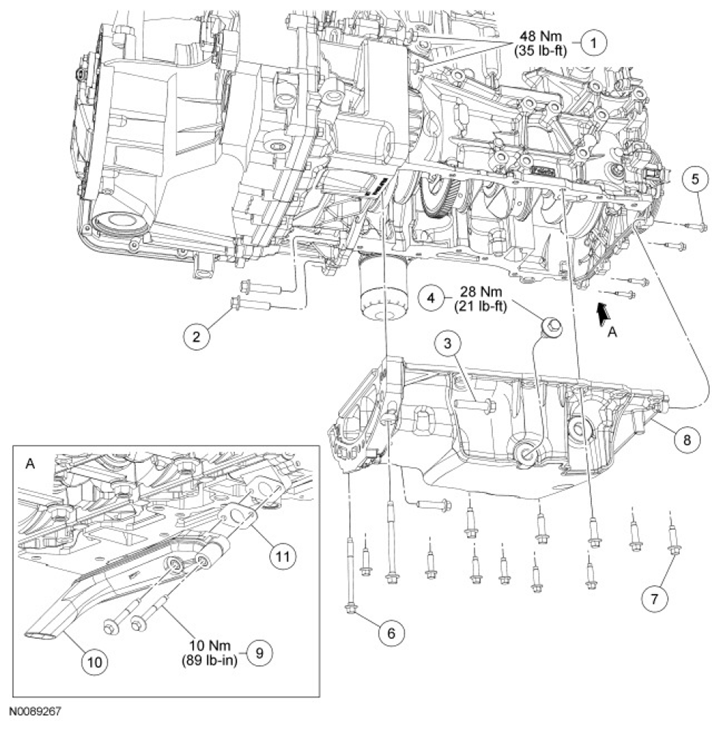

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500120 | RH engine-to-bellhousing bolts (Front Wheel Drive (FWD) vehicles) |
| 2 | W500121 | Bellhousing-to-oil pan bolt (2 required) |
| 3 | W500121 | Oil pan-to-bellhousing bolt (2 required) |
| 4 | 6730 | Oil pan drain plug |
| 5 | W500215 | Engine front cover-to-oil pan bolt (4 required) |
| 6 | W706284 | Oil pan bolt (2 required) |
| 7 | W500224 | Oil pan bolt (11 required) |
| 8 | 6675 | Oil pan |
| 9 | W706282 | Oil pump screen and pickup tube bolt (2 required) |
| 10 | 6622 | Oil pump screen and pickup tube |
| 11 | 6625 | Oil pump screen and pickup tube gasket |
