Engine Front Cover: Material
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) | WSS-M2C945-A |

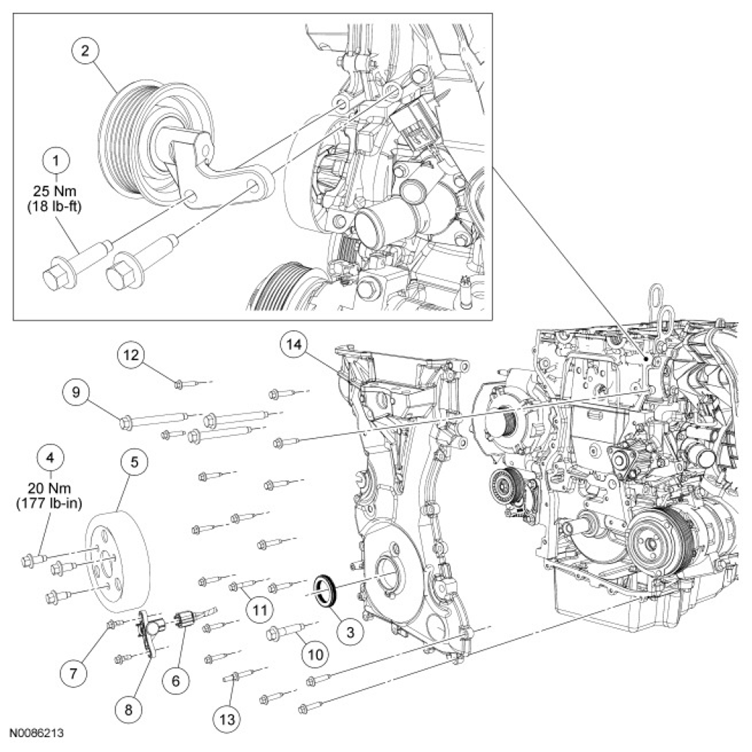

ENGINE FRONT COVER PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W500224 | Accessory drive belt idler pulley bolt (2 required) |
| 2 | 19A216 | Accessory drive belt idler pulley and bracket |
| 3 | 6700 | Crankshaft front seal |
| 4 | W500221 | Coolant pump pulley bolt (3 required) |
| 5 | 8509 | Coolant pump pulley |
| 6 | 14A464 | Crankshaft Position (CKP) sensor electrical connector (part of 12C508) |
| 7 | W701219 | CKP sensor bolt (2 required) |
| 8 | 6C315 | CKP sensor |
| 9 | W500328 | Engine front cover bolt (3 required) |
| 10 | W500320 | Engine front cover bolt |
| 11 | W500300 | Engine front cover bolt |
| 12 | W500215 | Engine front cover bolt (16 required) |
| 13 | - | Engine front cover stud bolt |
| 14 | 6019 | Engine front cover |
