Crankshaft Front Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.
    NOTE: Lubricate the oil seal with clean engine oil.

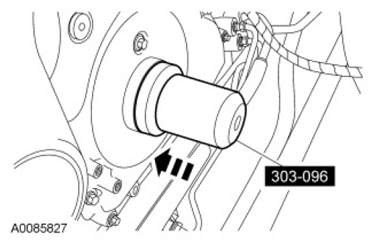

    Fig 1: Installing Crankshaft Front Oil Seal Using Camshaft Front Oil Seal Installer
    G07439172Courtesy of FORD MOTOR CO.
  1. Using the Camshaft Front Oil Seal Installer, install the crankshaft front oil seal.
  2. Install the crankshaft pulley. For additional information, refer to LOWER END COMPONENTS - EXPLODED VIEW, CRANKSHAFT PULLEY AND CRANKSHAFT FRONT SEAL  and CRANKSHAFT PULLEY  in this service information.
