Coolant Hoses
WARNING: This page is about a different variant/trim than selected.

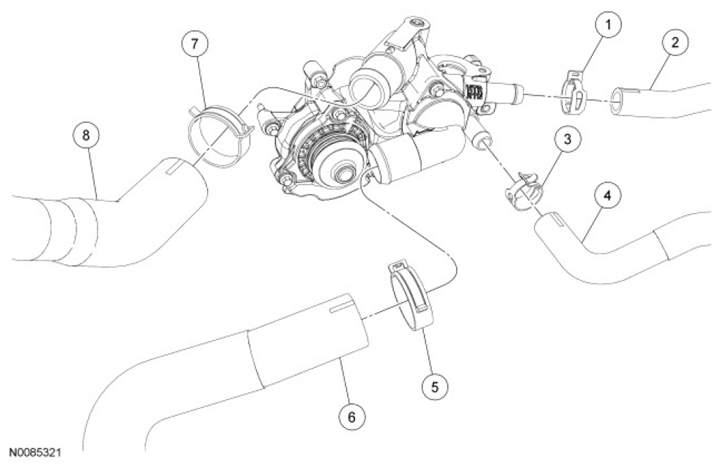

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W532958 |
Heater hose clamp |
| 2 |
18K580 |
Heater outlet hose |
| 3 |
W532958 |
Heater hose clamp |
| 4 |
18K579 |
Heater inlet hose |
| 5 |
W525871 |
Lower radiator hose clamp |
| 6 |
8B273 |
Lower radiator hose |
| 7 |
W525872 |
Upper radiator hose clamp |
| 8 |
8B274 |
Upper radiator hose |
