Coolant Pump - 3.0L (4V): Notes
WARNING: This page is about a different variant/trim than selected.

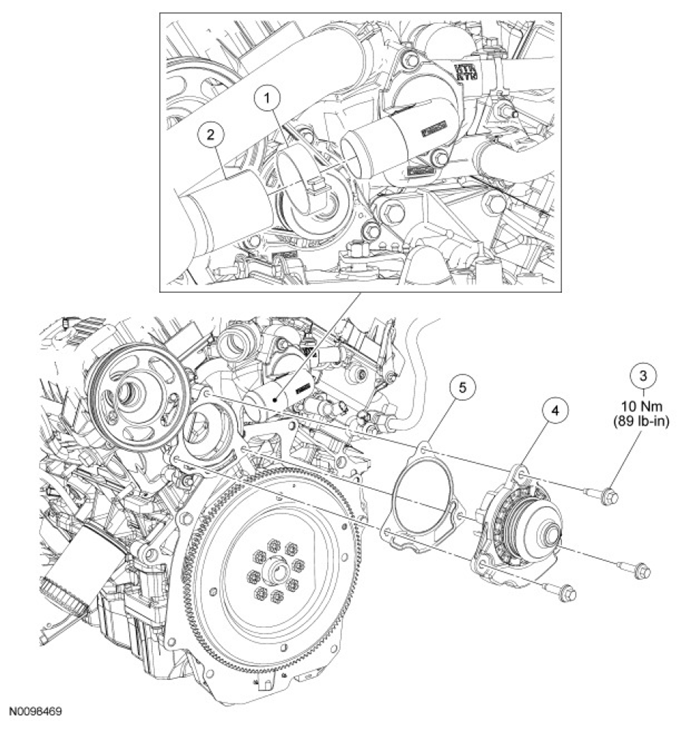

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W527376 |
Lower radiator hose clamp |
| 2 |
8B273 |
Lower radiator hose |
| 3 |
W503276 |
Coolant pump assembly bolt (3 required) |
| 4 |
8501 |
Coolant pump assembly |
| 5 |
8507 |
Gasket |
