Bypass Tube - 2.5L: Notes

WARNING: This page is about a different variant/trim than selected.

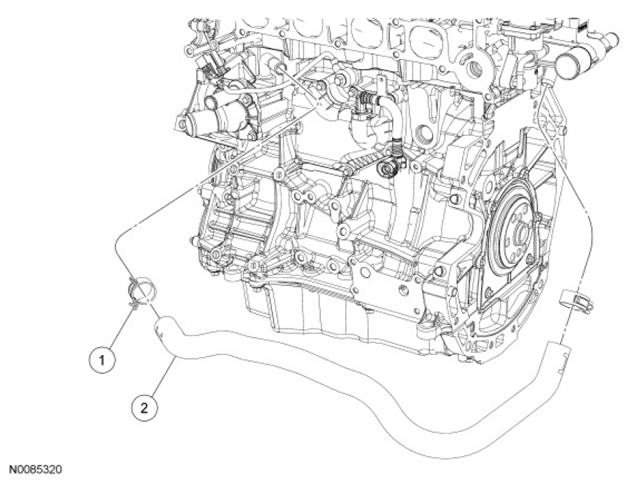

Fig 1: Identifying Bypass Tube Components - 2.5L
G07439806Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W525958 Hose clamp (2 required)
2 8548 Bypass tube
