Block Heater: 3.0L

WARNING: This page is about a different variant/trim than selected.

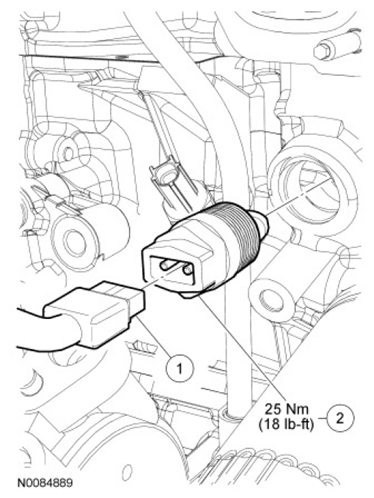

Fig 1: Block Heater Replacement Components With Torque Specifications - 3.0L
G07439803Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 14A199 Block heater electrical connector
2 6A051 Block heater
