Special Tool(s)
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS REFERENCE
| 2 Jaw Puller 205-D035 or equivalent | |
| Dial Indicator Gauge with Holding Fixture 100-D002 or equivalent | |
| Puller, Bearing 205-D064 or equivalent |

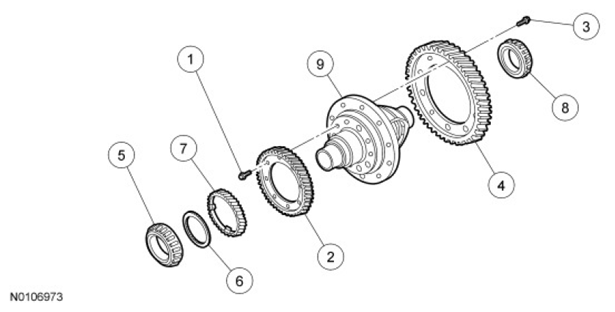

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 99784 | Reduction gear bolt (10 required) |
| 2 | 7789 | Reduction gear |
| 3 | 99784 | Final drive gear bolt (10 required) |
| 4 | 7F343 | Final drive gear |
| 5 | 3N305 | Differential side bearing |
| 6 | 7N112 | Spacer |
| 7 | 17285 | Vehicle Speed Sensor (VSS) drive gear |
| 8 | 3N305 | Differential side bearing |
| 9 | 4026 | Differential case assembly |
