Escape Hybrid, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Wiring Diagrams (Hybrid)
>>
Grounds
>>
G100, G101, G102, G103, G106, G107, G108, G110, G112, G113, G206
G100, G101, G102, G103, G106, G107, G108, G110, G112, G113, G206

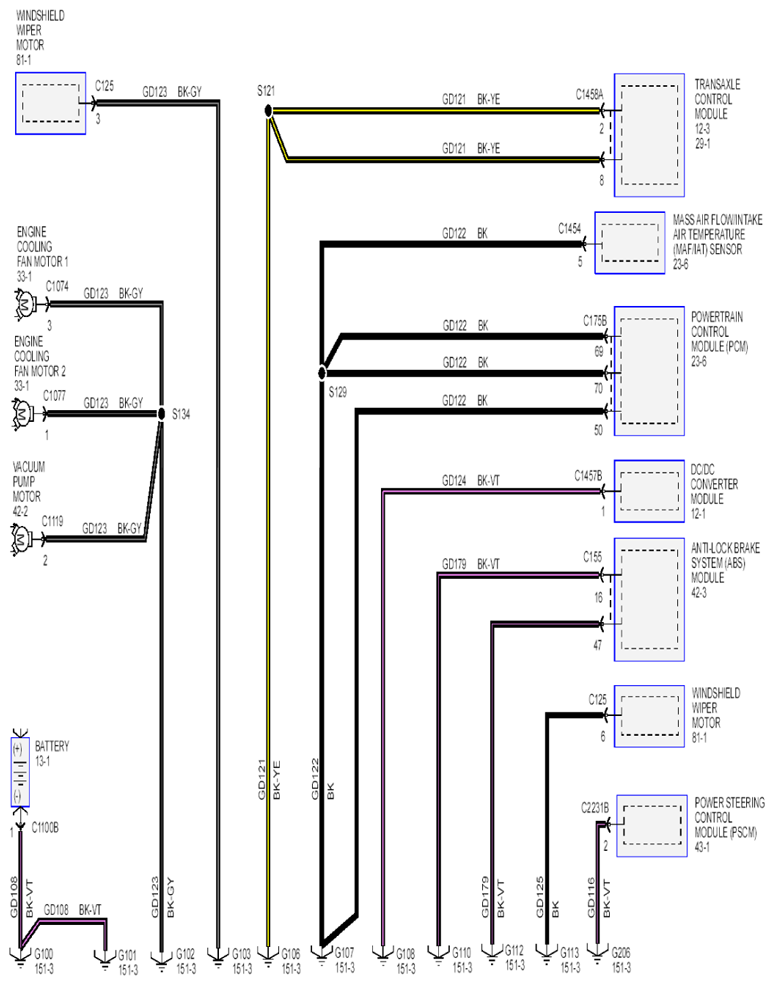

Fig 1: Vehicle Grounds Schematic (1 Of 10)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
