Message Center Switch: Notes

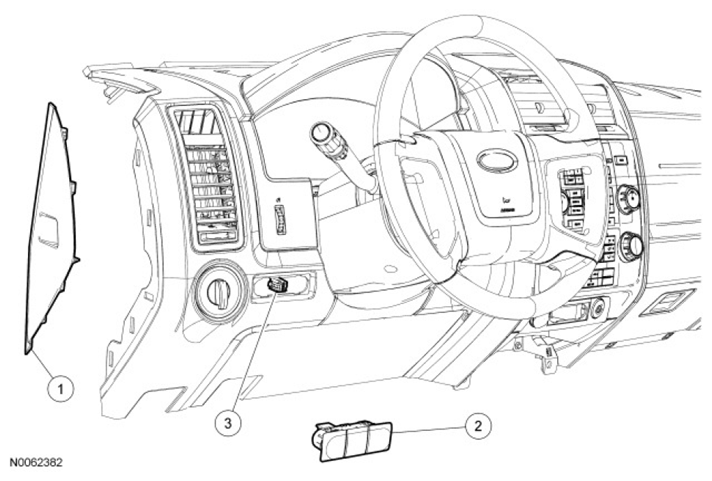

Fig 1: Identifying Message Center Switch Components
G07440325Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 7804481 Instrument panel trim panel
2 10D889 Message center switch
3 - Message center switch electrical connector (part of 14401)
