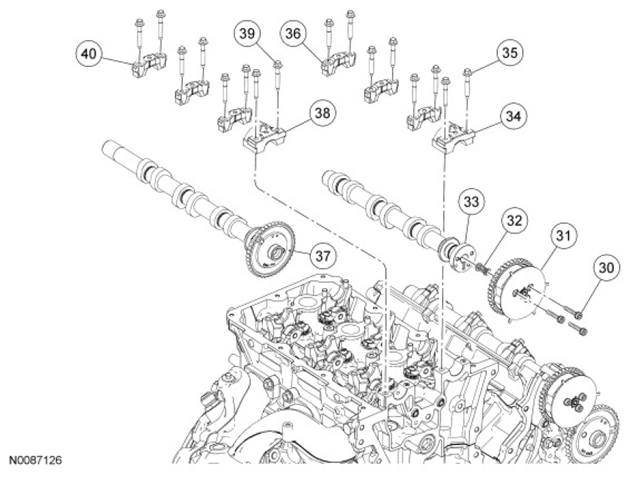

RH Side Intake and Exhaust Camshaft
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 30 | W713106 | Camshaft phaser and sprocket bolt (3 required) |
| 31 | 6C524 | Camshaft phaser and sprocket |
| 32 | 6C683 | VCT system oil filter |
| 33 | 6250 | LH intake camshaft |
| 34 | 6B280 | Intake camshaft thrust bearing cap |
| 35 | W710702 | Intake camshaft bearing cap bolt (8 required) |
| 36 | 6B280 | Intake camshaft bearing cap (3 required) |
| 37 | 6250 | LH exhaust camshaft |
| 38 | 6B280 | Exhaust camshaft thrust bearing cap |
| 39 | W710702 | Exhaust camshaft bearing cap bolt (10 required) |
| 40 | 6B280 | Exhaust camshaft bearing cap (3 required) |
- For additional information, refer to the appropriate procedures in this service information.
