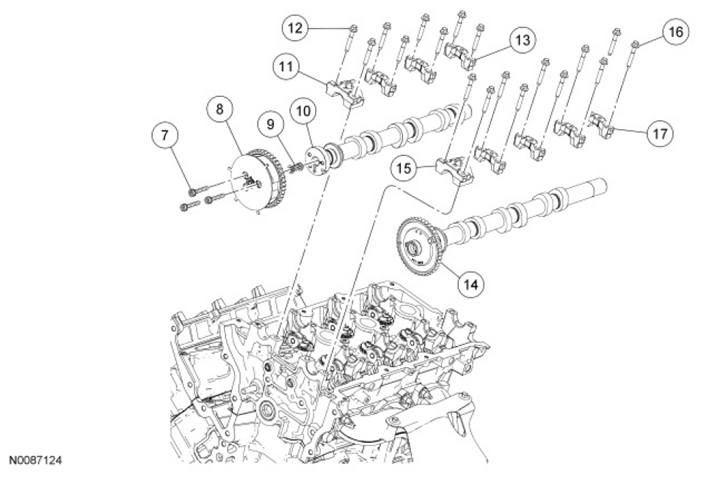

LH Side Intake and Exhaust Camshaft
WARNING: This page is about a different variant/trim than selected.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 7 | W713106 | Camshaft phaser and sprocket bolt (3 required) |
| 8 | 6C524 | Camshaft phaser and sprocket |
| 9 | 6C683 | Variable Camshaft Timing (VCT) system oil filter |
| 10 | 6250 | LH intake camshaft |
| 11 | 6B280 | Intake camshaft thrust bearing cap |
| 12 | W710702 | Intake camshaft bearing cap bolt (8 required) |
| 13 | 6B280 | Intake camshaft bearing cap (3 required) |
| 14 | 6250 | LH exhaust camshaft |
| 15 | 6B280 | Exhaust camshaft thrust bearing cap |
| 16 | W710702 | Exhaust camshaft bearing cap bolt (10 required) |
| 17 | 6B280 | Exhaust camshaft bearing cap (4 required) |
