Coolant Pump Belt and Pulley

WARNING: This page is about a different variant/trim than selected.

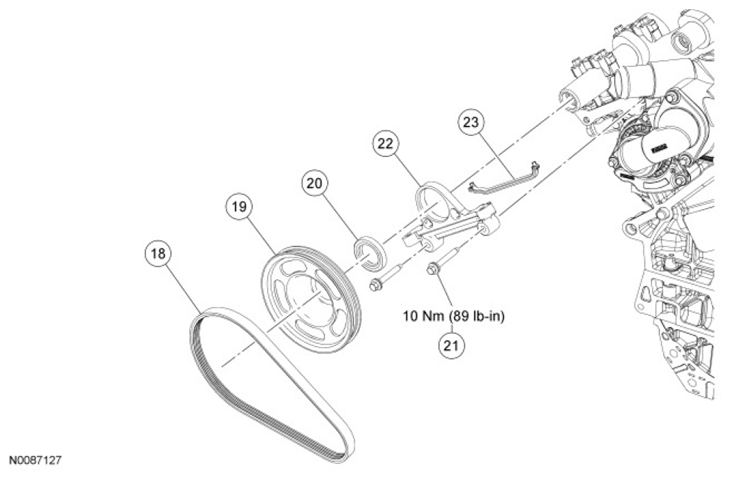

Fig 1: Exploded View Of Valve Train Components - Coolant Pump Belt And Pulley (3 Of 5)
G07441130Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
18 8K543 Coolant pump drive belt
19 6A359 Coolant pump drive pulley
20 - Camshaft oil seal
21 W701242 Camshaft oil seal retainer bolt (2 required)
22 6B293 Camshaft oil seal retainer
23 6B295 Camshaft oil seal retainer gasket
