Valve Spring, Retainer and Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER  in this service information.
    2. NOTE: If air pressure has forced the piston to the bottom of the cylinder, any loss of air pressure will allow the valve(s) to fall into the cylinder. A rubber band, tape or string wrapped around the end of the valve stem will prevent this from happening.
  2. Pressurize the cylinder using compressed air.
  3. Using the Valve Spring Compressor, remove the key, retainer and the valve spring.

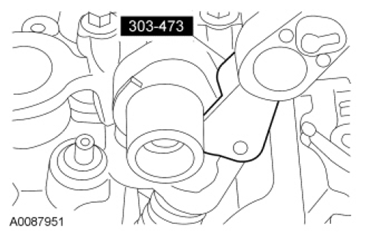

    Fig 1: Remove/Install Key, Retainer And The Valve Spring Using The Valve Spring Compressor
    G07441199Courtesy of FORD MOTOR CO.
    4. NOTE: Camshaft removed for clarity.

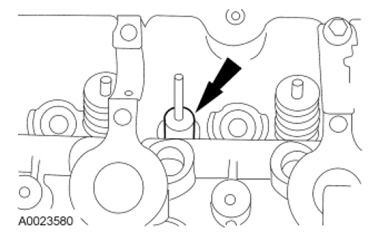

    Fig 2: Locating Valve Seal
    G07441200Courtesy of FORD MOTOR CO.
  4. Remove the valve seal.
