Valve Spring, Retainer and Seal: Installation

WARNING: This page is about a different variant/trim than selected.
    NOTE: Lubricate the valve guide with clean engine oil.

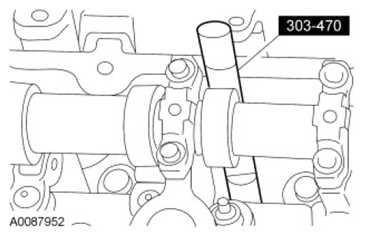

    Fig 1: Installing Valve Seal Using The Valve Stem Oil Seal Installer
    G07441201Courtesy of FORD MOTOR CO.
  1. Using the Valve Stem Oil Seal Installer, install the valve seal.
  2. Using the Valve Spring Compressor, install the valve spring, retainer and key.

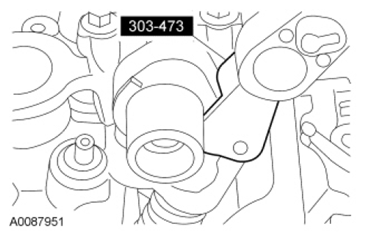

    Fig 2: Remove/Install Key, Retainer And The Valve Spring Using The Valve Spring Compressor
    G07441202Courtesy of FORD MOTOR CO.
  3. Install the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER  in this service information.
