Upper Intake Manifold (View 2 of 2)
WARNING: This page is about a different variant/trim than selected.

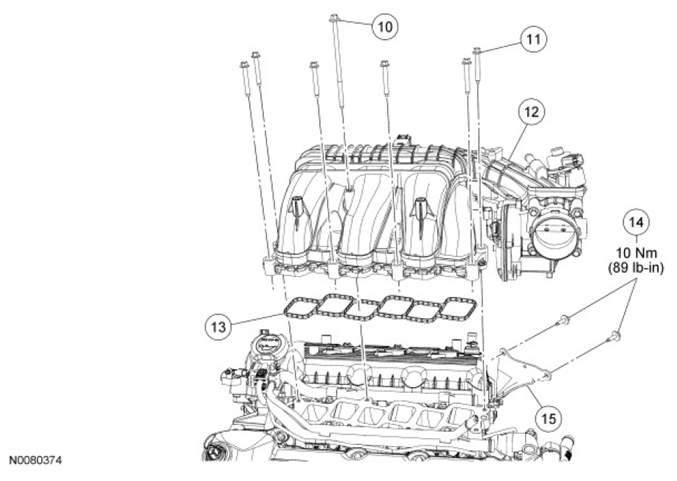

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Evaporative Emission (EVAP) canister purge valve electrical connector (part of 12C508) |
| 2 | 9D289 | EVAP tube-to-EVAP canister purge valve quick connect coupling |
| 3 | 14A464 | Electronic throttle control electrical connector (part of 12C508) |
| 4 | 14A464 | EGR regulator electrical connector (part of 12C508) |
| 5 | - | EGR tube fitting (part of 9D477) |
| 6 | W700497 | Engine control wiring harness retainer (part of 12C508) (2 required) |
| 7 | - | Brake booster vacuum tube |
| 8 | 6K817 | PCV tube |
| 9 | 14A464 | Manifold Absolute Pressure (MAP) electrical connector (part of 12C508) |
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 10 | W713391 | Upper intake manifold bolt |
| 11 | 9Y450 | Upper intake manifold bolt (6 required) |
| 12 | 9424 | Upper intake manifold |
| 13 | - | Upper intake manifold gasket |
| 14 | W701775 | Upper intake manifold support bracket bolts (2 required) |
| 15 | 9J444 | Upper intake manifold support bracket |
