Timing Drive Components: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.
NOTE: Failure to verify correct timing drive component alignment will result in severe engine damage.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  in this service information.
  2. Remove the LH and RH spark plugs. For additional information, refer to ENGINE IGNITION - 3.0L (4V) article.
  3. NOTE: This pulse wheel is used in several different engines. Install the pulse wheel with the keyway in the slot stamped "30RFF" (orange in color).

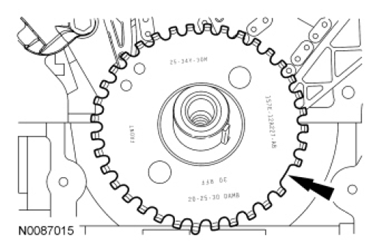

    Fig 1: Locating Ignition Pulse Wheel
    G07441102Courtesy of FORD MOTOR CO.
  4. Remove the ignition pulse wheel.
  5. Install the crankshaft pulley bolt and washer.

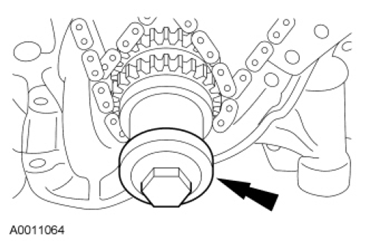

    Fig 2: Locating Crankshaft Pulley Bolt
    G07441103Courtesy of FORD MOTOR CO.
  6. Rotate the crankshaft clockwise to position the crankshaft keyway in the 11 o'clock position and position the camshafts in the correct position. This will position the No. 1 cylinder at Top Dead Center (TDC).
    • Verify that the camshafts are correctly located. If not, rotate the crankshaft one additional turn and recheck.

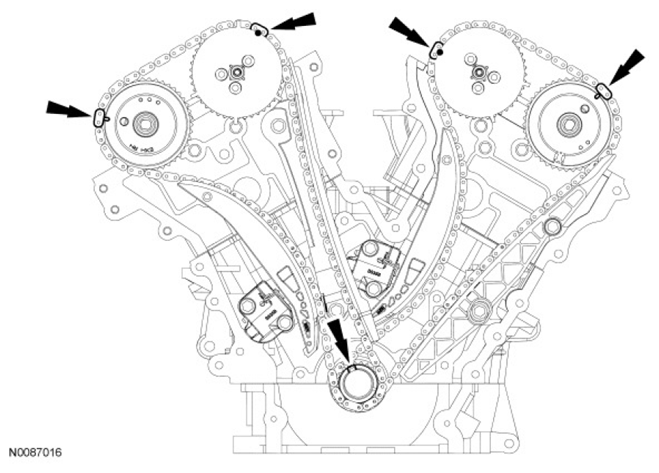

      Fig 3: Locating Marking On Timing Chain
      G07441104Courtesy of FORD MOTOR CO.
  7. Rotate the crankshaft clockwise 120 degrees to the 3 o'clock position to position the RH camshafts in the neutral position.

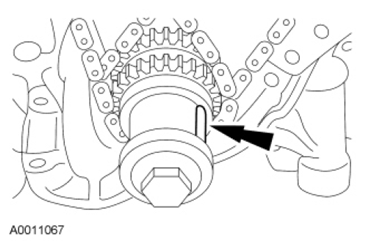

    Fig 4: Locating Crankshaft Position
    G07441105Courtesy of FORD MOTOR CO.
  8. Verify that the RH camshafts are in the neutral position.

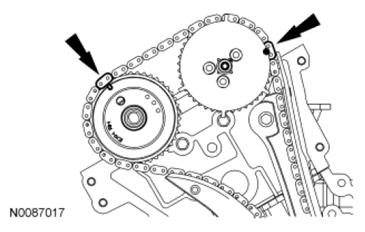

    Fig 5: Locating RH Camshafts Neutral Position
    G07441106Courtesy of FORD MOTOR CO.
  9. Remove the RH timing chain tensioner arm.
    1. Remove the 2 bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.

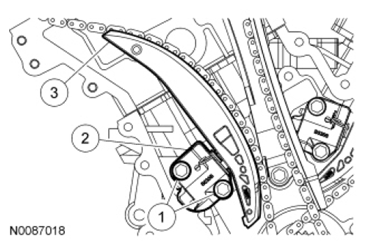

      Fig 6: Identifying RH Timing Chain Tensioner Arm With Bolts
      G07441107Courtesy of FORD MOTOR CO.
  10. Remove the 2 bolts and the RH timing chain guide.
    • Remove the RH timing chain from the engine.

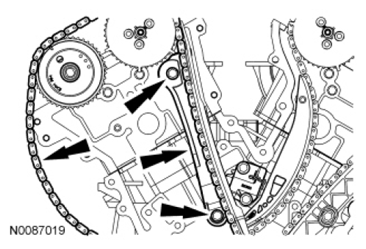

      Fig 7: Locating RH Timing Chain Guide And Bolts
      G07441108Courtesy of FORD MOTOR CO.
  11. Rotate the crankcase clockwise 600 degrees (one and two-third turns) to position the crankcase keyway in the 11 o'clock position. This will position the LH camshafts in the neutral position.

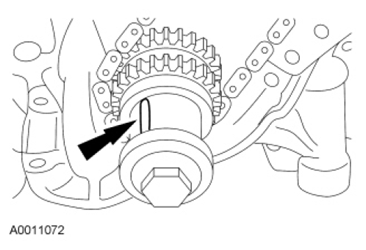

    Fig 8: Locating Crankcase Keyway
    G07441109Courtesy of FORD MOTOR CO.
  12. Verify the LH camshafts are in the neutral position.

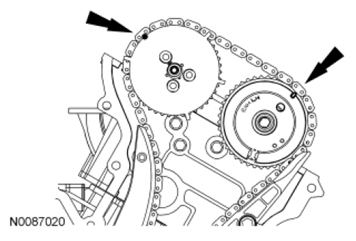

    Fig 9: Locating LH Camshafts Neutral Position
    G07441110Courtesy of FORD MOTOR CO.
  13. Remove the LH timing chain and tensioner arm.
    1. Remove the 2 bolts.
    2. Remove the tensioner.
    3. Remove the tensioner arm.

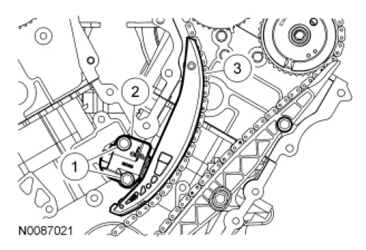

      Fig 10: Identifying LH Timing Chain And Tensioner Arm With Bolts
      G07441111Courtesy of FORD MOTOR CO.
  14. Remove the 2 bolts and the LH timing chain guide.
    • Remove the LH timing chain from the engine.
      Fig 11: Locating LH Timing Chain Guide With Bolts
      G07441112Courtesy of FORD MOTOR CO.
  15. Remove the crankshaft pulley bolt and the crankshaft sprocket.

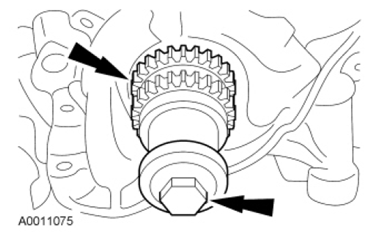

    Fig 12: Locating Crankshaft Pulley Bolt And Crankshaft Sprocket
    G07441113Courtesy of FORD MOTOR CO.
