Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Position the oil pump and install the bolts.
    • Tighten in the sequence shown in illustration to 10 Nm (89 lb-in).

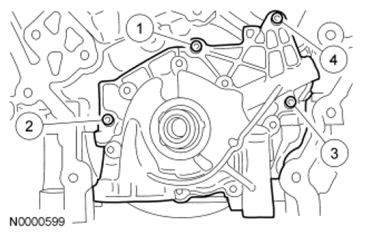

      Fig 1: Identifying Oil Pump Bolts Tightening Sequence
      G07441253Courtesy of FORD MOTOR CO.
  2. Install the oil pump screen and pickup tube. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW  and OIL PUMP SCREEN AND PICKUP TUBE  in this service information.
  3. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
